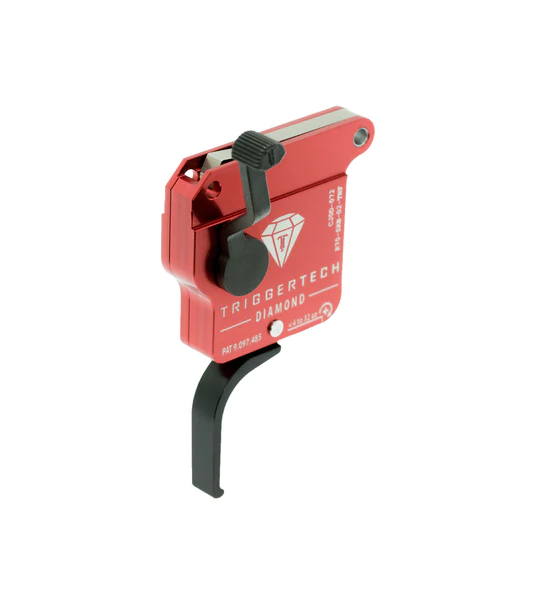

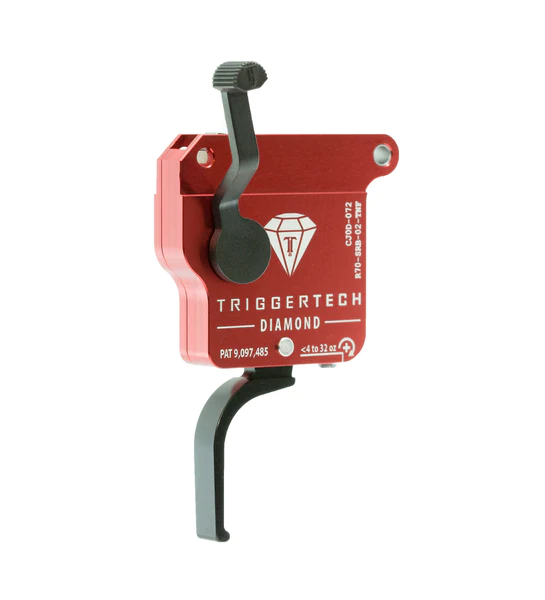

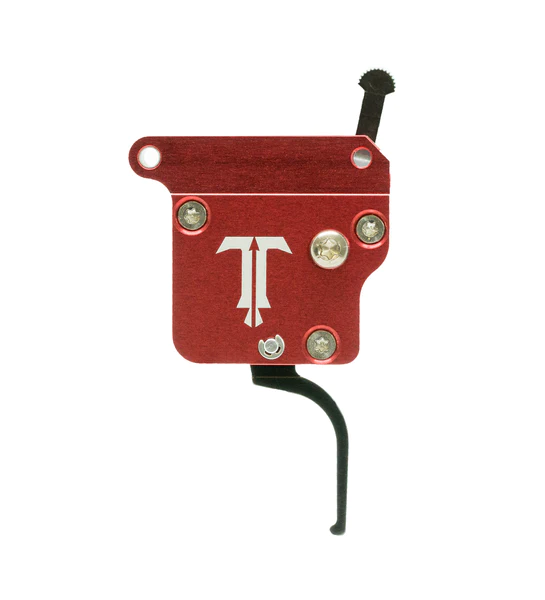

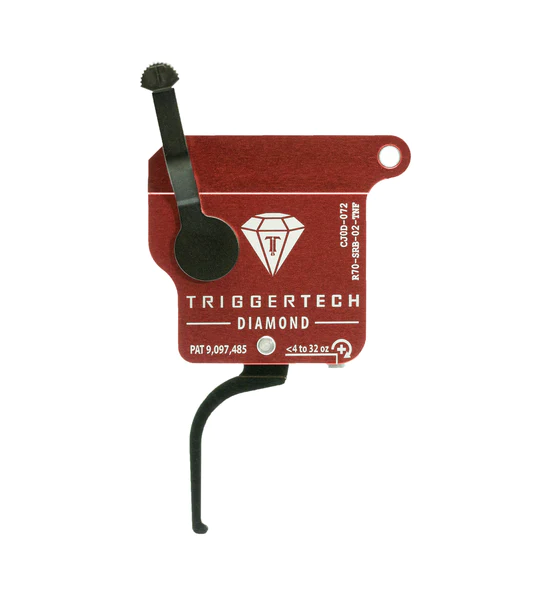

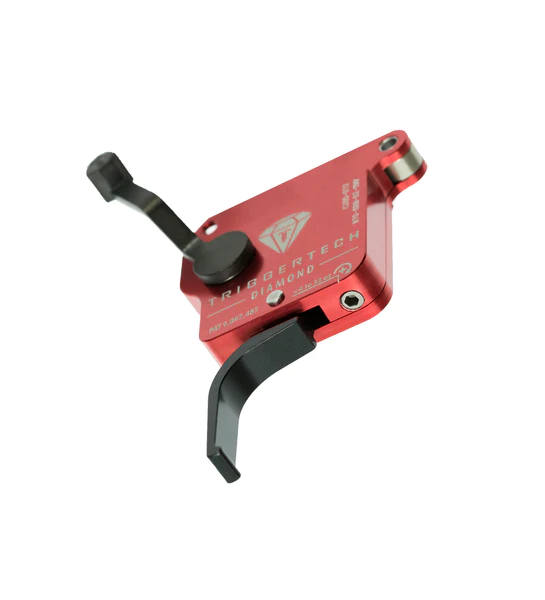

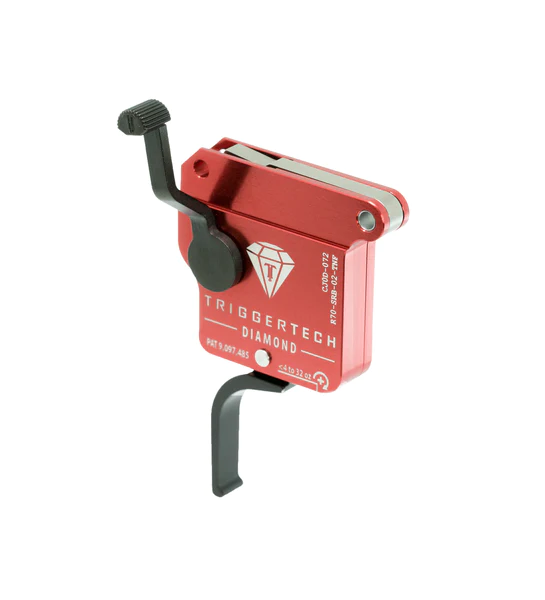

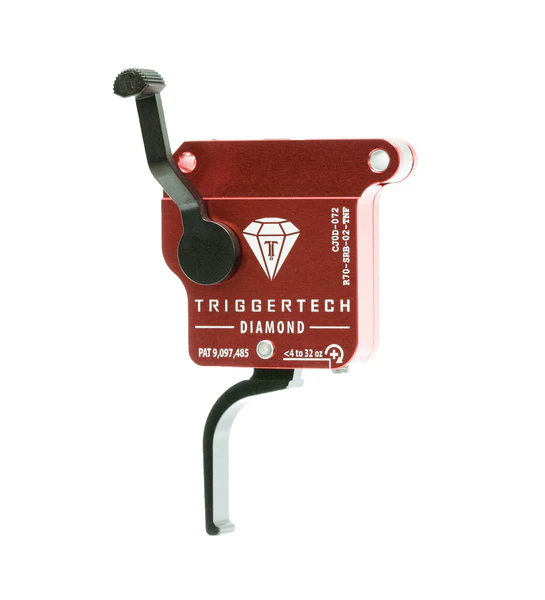

TriggerTech Rem 700 Diamond Trigger, Single Stage Right-Handed, No Bolt Release, Straight Flat PVD Black Trigger

The first Rem 700 Diamond Trigger was shown at the 2017 NRA Show. Since then TriggerTech has worked with the K&M Shooting Team and several leading R700 Clone action manufacturers the refine the product. The Rem 700 Diamond is truly zero creep and is the most consistent and crisp breaking trigger you will ever use. The diamond will make you aware of the creep that exists in other triggers. It features new variable rate adjustment technology that enables quick and confident adjustment from <4oz – 32oz with TriggerTech’s patented CLKR Technology™. The adjustment feature utilizes externally accessible set screw and the adjustment range begins at ~0.2 oz/click from <4 oz to ~9 oz and the changes to ~1 oz click from ~9 oz to 32 oz. Due to the exceptionally crisp break, most shooters report the pull weights feeling significantly lighter than a friction based trigger of the same measured weight. Five of the critical Diamond components are assembled as matched set to enable a true zero-creep break, extremely short overtravel and offers outstanding reliability, even in the harshest environments. Frictionless Release Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Frictionless Release Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots more than you ever thought possible.

Trigger Control Details

• Weapon Platform: Remington 700 Clone Actions
• Trigger Lever Type: Flat Straight
• Trigger Action: Single Stage
• FRT: Yes
• TKR Technology: Yes
• CLKR Technology: Yes
• Overtravel: Sub .010"
• Pull Weight: <4 oz - 32 oz
• Bolt Release: Without
• Safety: Yes - Top
• Hand: Right
• Warranty: Product lifetime

Material Details

• Housing: 7075 Aluminum (anodized)
• Key Components: 440C Stainless Steel
• PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.
