Nightforce X-Treme Duty Ultralite Unimount

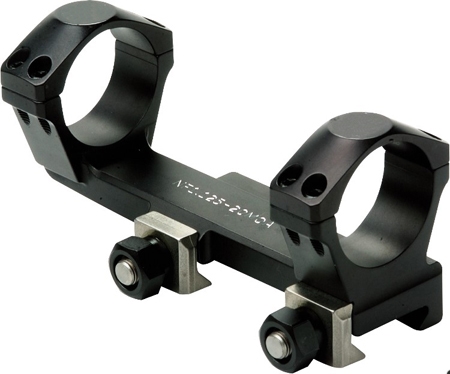

30mm · 1.125" Height · 20 MOA · 7075-T6 Aluminum · Titanium Cross Bolts and Jaws · Cantilever · A190 The Nightforce X-Treme Duty Ultralite Unimount is a one-piece cantilever scope mount machined from 7075-T6 hard anodized aluminum in Nightforce's Idaho factory. Titanium cross bolts and jaws reduce weight while providing secure attachment on MIL-STD 1913 Picatinny rails. Cantilever design allows scopes to be mounted further forward than the receiver may allow—ensures proper eye relief. 30mm tube diameter. 1.125" centerline height. 20 MOA built-in taper for extended long-range elevation adjustment. A190.

7075-T6 Aluminum with Titanium Hardware

7075-T6 hard anodized aluminum body machined in Idaho. Titanium cross bolts and jaws reduce overall mount weight while maintaining clamping security on MIL-STD 1913 rails.

20 MOA Taper

20 MOA built-in cant provides additional elevation adjustment range for long-range shooting. The forward cant uses more of a scope's elevation travel for extended distance work.

Cantilever Design

Cantilever construction positions the scope further forward than a standard ring mount on the same rail section—accommodates eye relief requirements on shorter receivers and carbine platforms.

1.125" Height / 30mm

1.125" centerline height accommodates 30mm tube diameter with standard objective lens clearance over most flat-top AR and bolt-action receivers.

MIL-STD 1913 Compatible

Attaches to MIL-STD 1913 Picatinny rails. One-piece construction provides added rigidity and security over two-ring setups. The Nightforce Ultralite Unimount delivers one-piece cantilever mounting—titanium hardware on 7075-T6 aluminum at 30mm / 1.125" / 20 MOA for precise long-range riflescope positioning.

Specifications:

• Manufacturer: Nightforce
• Model: X-Treme Duty Ultralite Unimount
• SKU: A190
• Tube Diameter: 30mm
• Height: 1.125 inches
• Taper: 20 MOA
• Body Material: 7075-T6 Aluminum (Hard Anodized)
• Hardware: Titanium Cross Bolts and Jaws
• Design: Cantilever (One-Piece)
• Rail Compatibility: MIL-STD 1913 Picatinny
• Origin: USA (Idaho)
