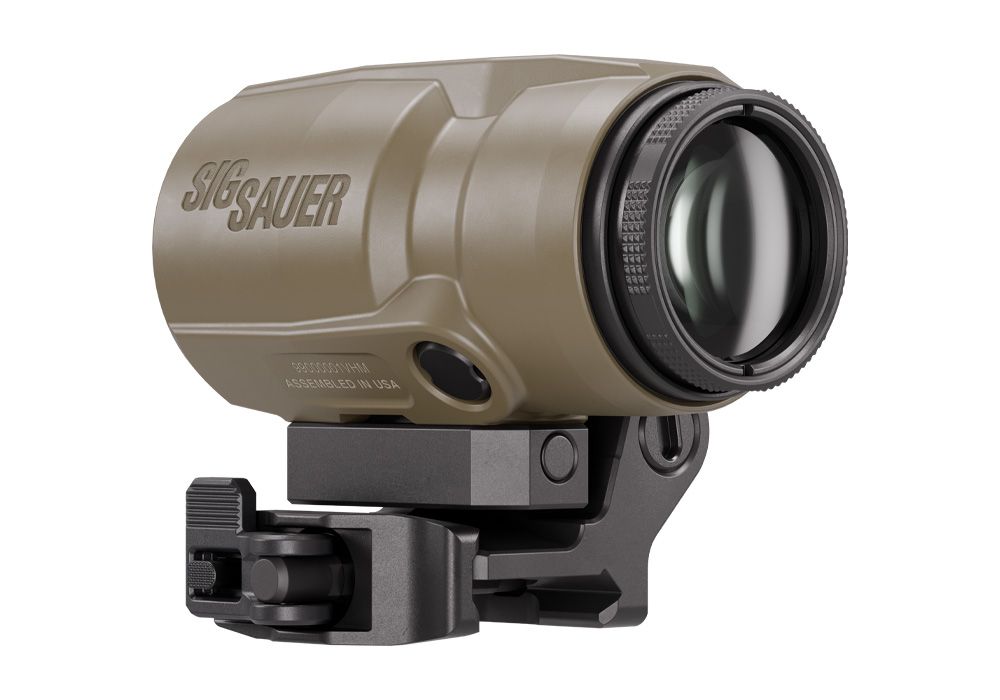

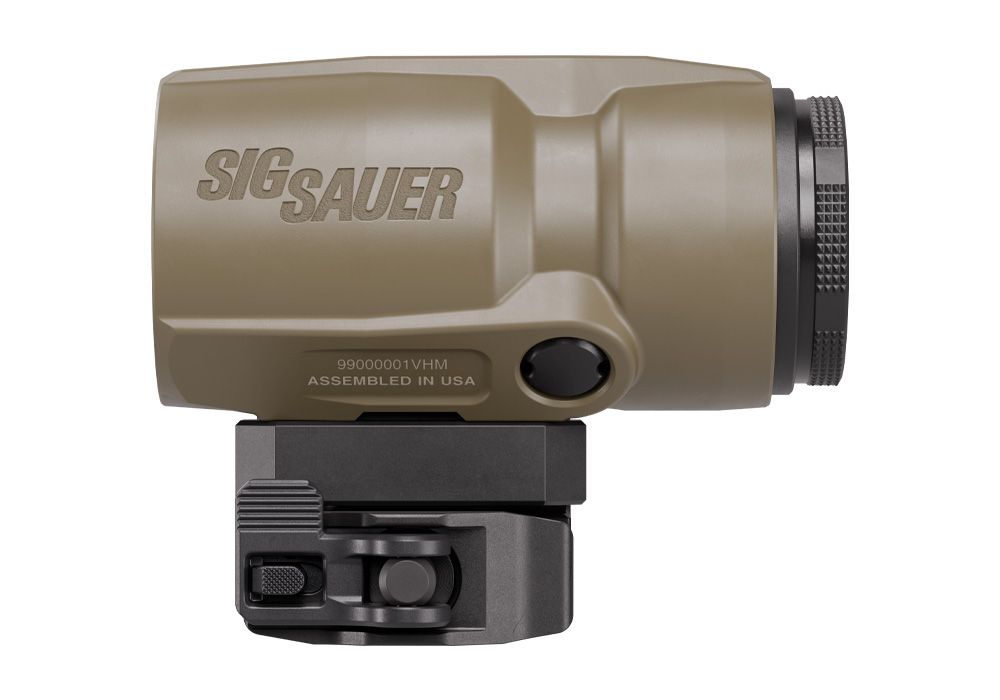

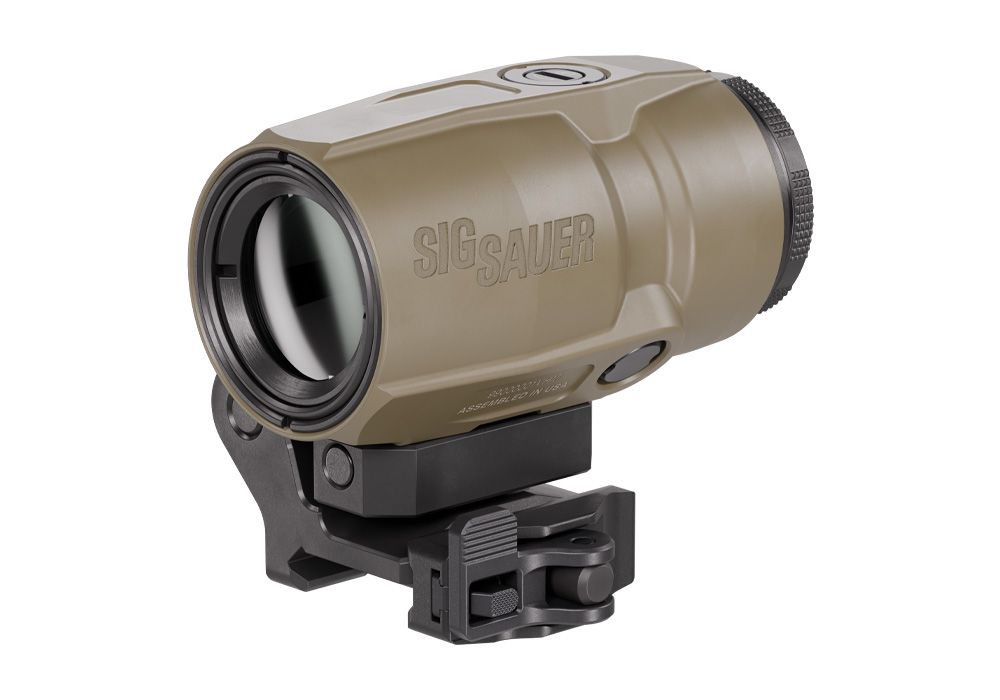

SIG Sauer JULIET3T-AMR 3x22 Compact Magnifier, Flip-to-Side Mount, FDE

SIG Sauer JULIET3T-AMR 3x22mm Compact Magnifier - FDE

The SIG Sauer JULIET3T-AMR is a 3x22mm compact magnifier in Flat Dark Earth (FDE), built to add a magnified view behind a compatible unmagnified sight while supporting SIG Sauer Automatic Modified Reticle technology. High-performance lens coatings, a dielectric-coated prism, an aircraft-grade aluminum housing, a flip-to-side quick-release mount, and IPX8 waterproof and fogproof construction create a specialized optic for rifles that must move rapidly between close and extended viewing distances.

This exact Flat Dark Earth (FDE) variant uses a compact profile intended to limit rail-space and weight demands. Its 6.8-degree field of view, 63mm eye relief, 5.7mm exit pupil, and +/- 2 DPT diopter range give buyers concrete fit and viewing specifications before installation.

Match the magnifier height, eye relief, and AMR requirements to the complete sighting system. Purchase the SIG Sauer JULIET3T-AMR in Flat Dark Earth (FDE) at BattleHawk Armory.

Automatic Modified Reticle Compatibility

The JULIET3T-AMR is compatible with Automatic Modified Reticle, or AMR, technology. In a compatible AMR sight-and-magnifier system, engaging or disengaging the magnifier can trigger the sight to change reticle configuration automatically. The purpose is to present an appropriate reticle state for the magnified or unmagnified view without requiring the shooter to stop and manually change the sight.

AMR functionality is not a universal feature of every red dot or holographic sight. The magnifier can provide optical magnification when mechanically and optically compatible, but automatic reticle switching requires a supported AMR-equipped sight. Confirm the exact sight model, mount height, rail space, and alignment before purchase.

3x22mm Coated Prism Optics

The optical system provides fixed 3x magnification through a 22mm objective lens. High-performance lens coatings and a dielectric-coated prism are used to support strong light transmission and a clear image in varied lighting conditions. The listed field of view is 6.8 degrees, while the 5.7mm exit pupil and 63mm eye relief define the viewing window and head-position requirements.

A +/- 2 DPT diopter adjustment allows the user to focus the image for individual eyesight. Set the diopter while viewing a detailed target, then verify that the sight and magnifier remain aligned through the full flip-to-side movement. A magnifier does not change the zero of the primary sight, but mechanical alignment and a centered image are still essential.

Flip-to-Side Quick-Release Mount

The included flip-to-side quick-release mount lets the user move the magnifier behind the primary sight for a magnified view, then rotate it out of the optical path for an unmagnified view. This supports rapid transitions without removing the magnifier from the rifle. The quick-release function also simplifies removal when the rifle must be made lighter or when the optic is being serviced.

Both 1.53 and 1.63 spacer sets are included to support common sight-height configurations. Spacer selection must match the centerline of the primary optic. Confirm screw length, thread engagement, rail position, and eye relief before live-fire use, and follow the supplied torque guidance rather than estimating.

Compact Aluminum Housing in Flat Dark Earth (FDE)

The aircraft-grade aluminum housing is designed for long service while controlling unnecessary mass. This Flat Dark Earth (FDE) finish is specific to SKU SOJ3MT11; it should not be substituted for another color variant when matching a rifle, mount, or accessory package. The optic is built for MIL-810-STD durability and is rated IPX8 waterproof and fogproof.

A rubber bikini cover protects the lenses during transport and storage. Environmental ratings do not eliminate the need for routine care. Keep lens surfaces clean with optic-safe tools, inspect the mount after impacts, and verify that the flip mechanism and fasteners remain secure.

Fitment and Use Guidance

The JULIET3T-AMR must be mounted behind a compatible primary sight with enough rail space to establish the listed 63mm eye relief. The user should be able to obtain a full image without forcing an unnatural head position. Stock length, cheek position, backup sights, charging-handle access, and other rail-mounted accessories can all affect placement.

Before use, confirm that the mount locks securely, the magnifier clears adjacent equipment when folded, and the primary sight remains visible in both positions. Buyers seeking AMR behavior must also verify that the primary sight specifically supports Automatic Modified Reticle technology.

Included Accessories

Rubber bikini cover, L-key driver, 1.53 spacer and screws, and 1.63 spacer and screws. These parts give the installer the core hardware needed to establish one of the two supplied height configurations and protect the optic during transport or storage.

Product Specifications

• Manufacturer: SIG Sauer
• Model: JULIET3T-AMR
• SKU: SOJ3MT11
• UPC: 798681727254
• Exterior Color: Flat Dark Earth (FDE)
• Optic Type: Compact flip-to-side magnifier
• Magnification: 3x
• Objective Lens Diameter: 22mm
• Field of View: 6.8 degrees
• Eye Relief: 63mm
• Exit Pupil: 5.7mm
• Diopter Range: +/- 2 DPT
• AMR: Automatic Modified Reticle compatible
• Housing: Aircraft-grade aluminum
• Mount: Flip-to-side quick release
• Waterproof Rating: IPX8 waterproof and fogproof
• Country of Origin: USA
• Overall Length: 3.0 inches
• Overall Height: 2.5 inches
• Overall Width: 2.2 inches
• Overall Weight: 9.6 ounces
• Included Accessories: Rubber bikini cover, L-key driver, 1.53 spacer and screws, and 1.63 spacer and screws

Frequently Asked Questions

What magnification does the JULIET3T-AMR provide?

It provides fixed 3x magnification through a 22mm objective lens.

What does AMR compatibility mean?

Automatic Modified Reticle compatibility allows a supported AMR sight to change reticle configuration when the compatible magnifier is engaged or disengaged.

Can this magnifier be used with any red dot?

Mechanical and optical compatibility depend on sight height, rail space, eye relief, and alignment. Automatic reticle switching only works with a supported AMR sight.

Which spacer heights are included?

The package includes 1.53 and 1.63 spacer sets with screws.

Is the magnifier waterproof?

It carries an IPX8 waterproof rating and is identified as fogproof within the limits of the product rating.

Which color is this SKU?

SKU SOJ3MT11 and UPC 798681727254 identify the Flat Dark Earth (FDE) variant.
