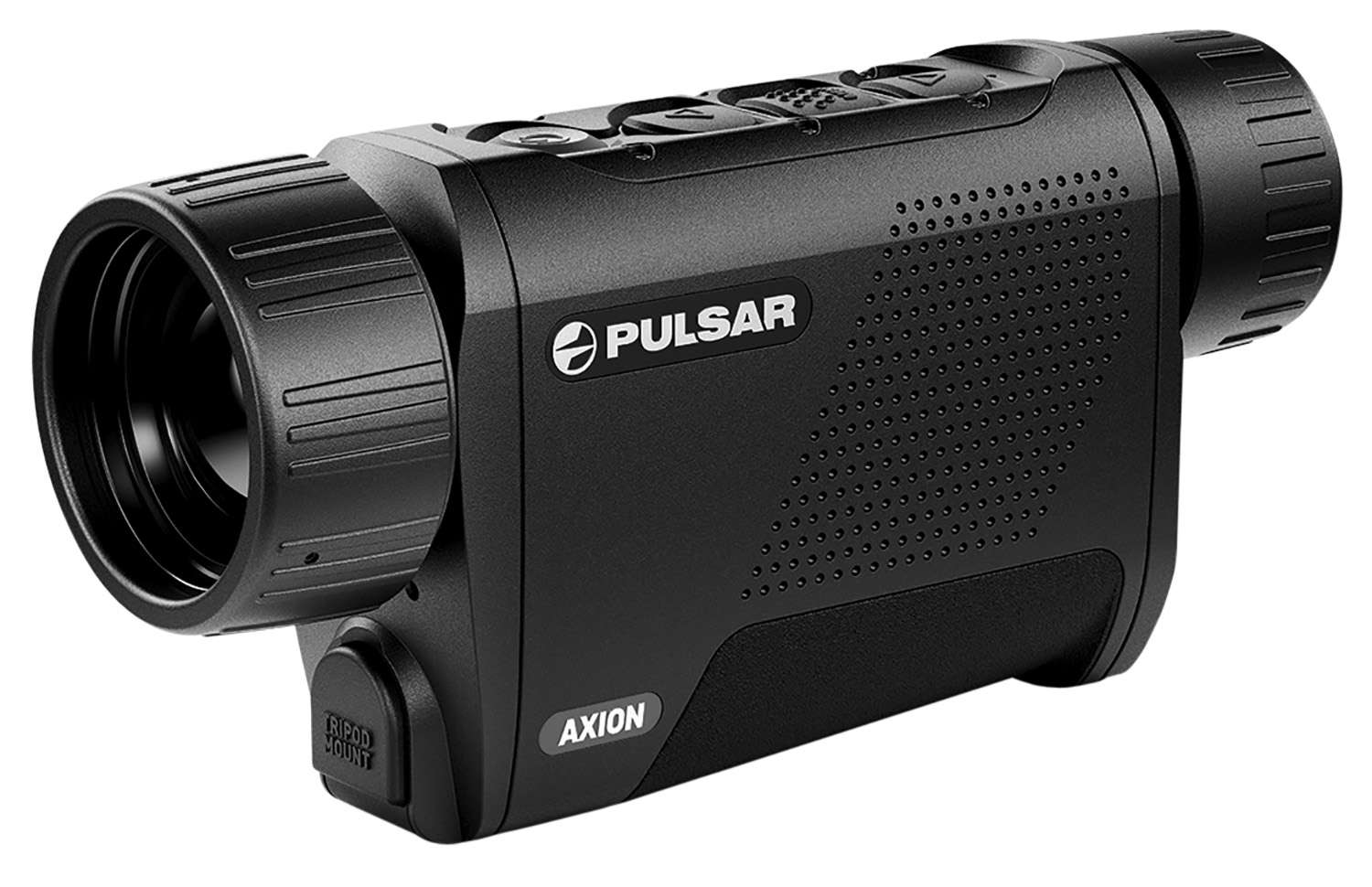

REFURBISHED Pulsar Axion LFR XQ38 Monocular 3.5-14x 9.8x17.2 Degrees FOV

Model

XQ38 LRF

SKU

77428

Microbolometer

Type

uncooled

Resolution, Pixels

384x288

Pixel Pitch, µm

17

Frame Rate, Hz

50

Optical Characteristics

Optical Magnification, x

3.5

Smooth Digital Zoom

3.5-14

Digital Zoom, x

2/4

Lens Focus, mm

38

Relative Aperture, D/f'

1.2

Minimum Focus Distance, m

3

Eye Relief Diameter, mm

3.5

Angular Field of View (Horizontal x Vertical), degree

9.8x7.4

Linear Field of View, m at 100 m

17.2

Eyepiece Focus Range, Diopter

+4 / -5

Detection Distance for Deer-Sized Objects, m/y

1350/1476

Display

Type

AMOLED

Resolution, Pixels

1024x768

Operational Characteristics

Power Supply, V

3 - 4.2

Battery Type/Capacity/Nominal Output Voltage

APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V

External Power Supply

5-15 V (USB Type-C)

Battery Run Time at t=22°C, hours

7

Degree of Protection, IP Code (IEC60529)

IPX7

Operating Temperature Range, °C

-25 to +40

Dimensions, mm/inch

167x74x73 / 6.57x2.91x2.87

Weight (without battery), kg/oz

0.38/13.4

Characteristics of the Rangefinder

Wavelength, nm

905

Measurement Range, m/y*

1000/1094

Measurement Accuracy, m

1
