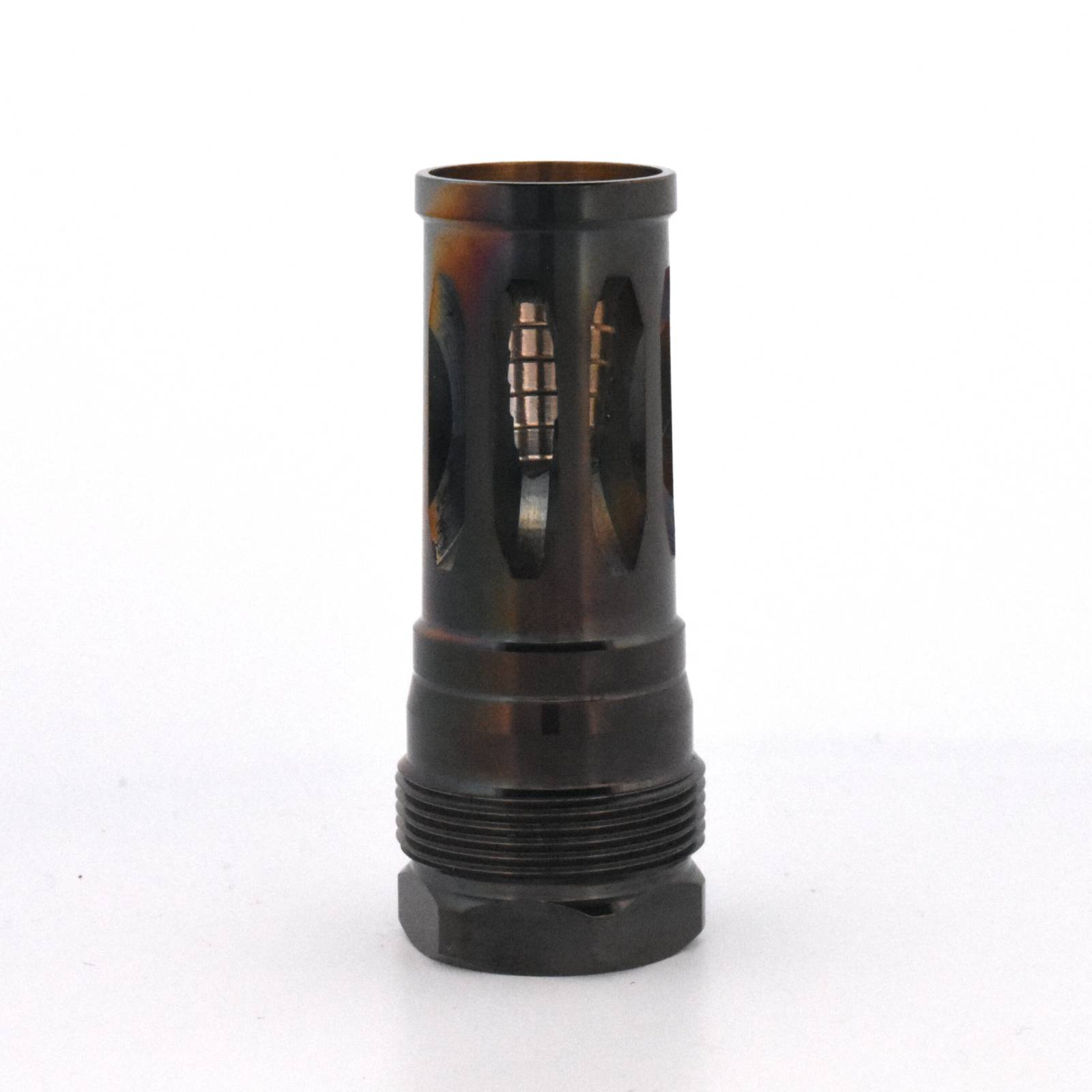

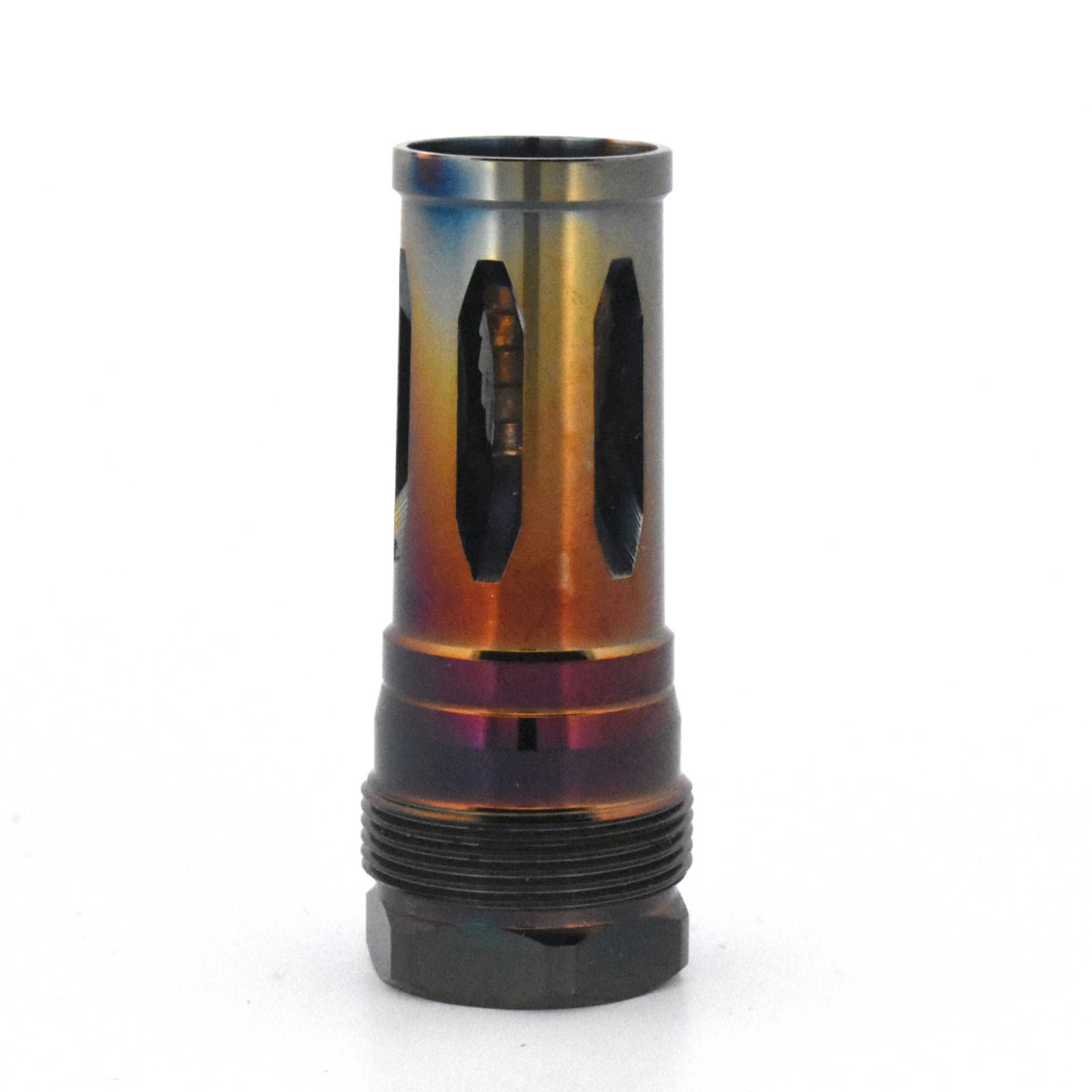

Rearden R2C 5/8-24 .375 Bore Rainbow PVD Flash Hider Muzzle Device

The Rearden R2C flash hider provides dual suppressor mounting compatibility with both Rearden Atlas/Atlas XL systems and Plan B type mounts. Precision-machined from 17-4 PH stainless steel with a distinctive rainbow black PVD finish, the R2C features 5/8-24 threading and .375-inch bore for .30 caliber rifles. Atlas adapter overrun measures approximately 1.600 inches while Atlas XL adapter overrun measures approximately 0.750 inches. Shims included for precise timing and alignment.
Dual Mounting System Compatibility
The R2C works with both Rearden Atlas/Atlas XL and Plan B type mounting systems, providing versatility for use with multiple suppressor brands and models. This dual compatibility eliminates the need for different muzzle devices when switching between suppressors or mounting standards.
17-4 PH Stainless Steel with Rainbow PVD
Machined from 17-4 PH precipitation-hardened stainless steel for corrosion resistance and durability. The rainbow black PVD coating provides exceptional wear resistance and distinctive aesthetics while resisting scratching and chemical attack.
5/8-24 Threading - .375 Bore
Standard 5/8-24 thread pitch fits .308 Winchester, 6.5 Creedmoor, .300 Blackout, and similar .30 caliber rifles. The .375-inch bore accommodates projectiles up to .375 caliber.
Installation and Alignment
Always use an alignment rod to ensure proper system setup. Clean all mating surfaces thoroughly. Torque muzzle device to approximately 30 ft-lbs and apply Rocksett. Ensure the device is square against the shoulder. When attaching suppressors, verify threads and tapers are clean, then torque to 10 ft-lbs. Verify alignment before firing.
Compatibility Notice
Use on Q brand suppressors voids warranty. R2C is designed for Atlas and Plan B mounting systems only.
The Rearden R2C delivers versatile suppressor mounting with precision machining and durable construction.

SPECIFICATIONS

Manufacturer: Rearden
Model: R2C
Type: Flash Hider / Suppressor Mount
Thread Pitch: 5/8-24
Bore Diameter: .375 inches
Material: 17-4 PH Stainless Steel
Finish: Rainbow Black PVD
Mounting Compatibility: Rearden Atlas, Rearden Atlas XL, Plan B type mounts
Atlas Adapter Overrun: Approximately 1.600"
Atlas XL Adapter Overrun: Approximately 0.750"
Installation Torque (Muzzle Device): 30 ft-lbs
Installation Torque (Suppressor): 10 ft-lbs
Shims: Included
Warranty Notice: Use on Q suppressors voids warranty
Compatibility: .30 caliber rifles (.308 Win, 6.5 Creedmoor, .300 BLK, etc.)
