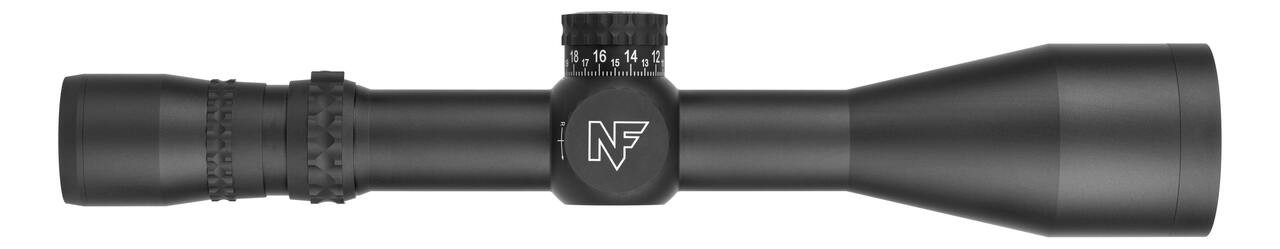

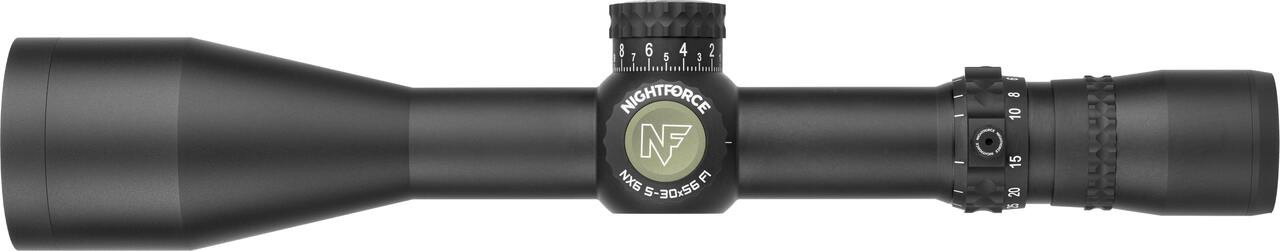

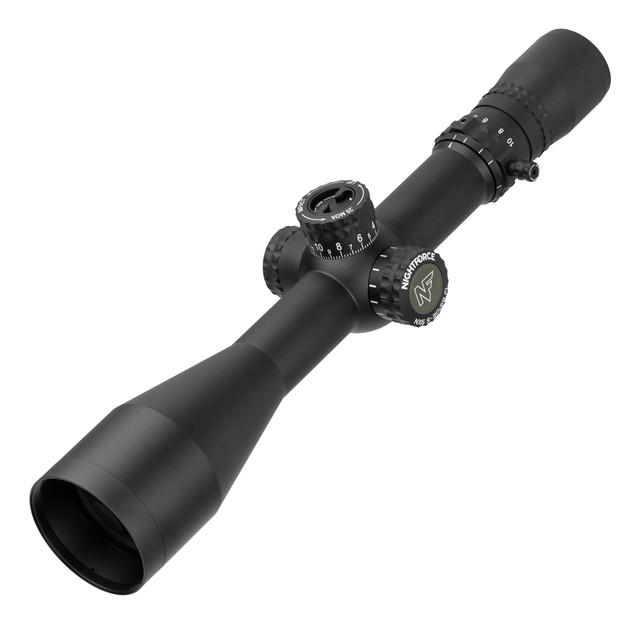

Nightforce NX6 5-30x56mm F1 Riflescope

5-30x56mm · First Focal Plane · MIL-XT Reticle · .1 MRAD Clicks · FieldSet Exposed · Digillum · 34mm · 30.9 oz The Nightforce NX6 5-30x56mm F1 is a first focal plane riflescope on a 34mm tube. MIL-XT reticle. .1 MRAD clicks. 34.9 MRAD (120 MOA) elevation travel, 24.7 MRAD (85 MOA) windage. FieldSet exposed elevation turret with tool-less field reset—converts between capped and exposed. BDC dials available from Nightforce for custom ballistic data. Digillum illumination. Standard power throw lever. Parallax 10m to infinity. 24.2 ft FOV at 5x, 4.0 ft at 30x (at 100 yards). 3.5" eye relief. 30.9 oz. 14.9" OAL. 6.2" mounting length. Black. Includes flip-up covers, cleaning fob/cloth, NX6 multi-tool, power throw lever, stickers, owner's manual.

MIL-XT Reticle

MIL-XT first focal plane reticle maintains accurate MRAD subtensions across the full 5-30x range. The XT grid design provides wind and elevation holdover references at any magnification.

FieldSet Exposed Turret

Tool-less field reset using any field-expedient tool. Converts between capped and exposed dial. Accepts custom BDC dials engraved to specific ballistic data—available from Nightforce. 34.9 MRAD total elevation and 24.7 MRAD windage travel.

.1 MRAD Clicks

.1 MRAD per click provides precise windage and elevation adjustment. 34.9 MRAD elevation and 24.7 MRAD windage travel accommodate extended long-range shooting and varied zero requirements.

Digillum Illumination

Digillum technology provides precise illumination intensity control for fast reticle acquisition in difficult lighting conditions.

5-30x Magnification

5-30x magnification with 24.2 ft FOV at 5x and 4.0 ft at 30x (at 100 yards). The 30x upper end supports precise target identification and holdover at extreme distances.

56mm Objective / 34mm Tube

56mm objective lens maximizes light gathering for low-light hunting and dawn/dusk shooting. 34mm body tube provides additional internal adjustment range over 30mm tubes. 6.2" mounting length.

Parallax and Eye Relief

Parallax adjustment from 10m to infinity. 3.5" eye relief across magnification range. Exit pupil 7.2mm at 5x and 1.9mm at 30x.

Power Throw Lever

Standard power throw lever included for fast magnification changes between shooting positions. The Nightforce NX6 5-30x56mm F1 delivers long-range first focal plane performance—MIL-XT reticle with FieldSet turret and Digillum in a 34mm 30.9 oz package for precision and competition shooting.

---

Specifications:

• Manufacturer: Nightforce
• Model: NX6 5-30x56mm F1
• Magnification: 5-30x
• Objective Lens: 56mm
• Focal Plane: First (F1)
• Reticle: MIL-XT
• Click Value: .1 MRAD
• Elevation Travel: 34.9 MRAD (120 MOA)
• Windage Travel: 24.7 MRAD (85 MOA)
• Turret System: FieldSet Exposed
• BDC Dial Compatible: Yes
• Illumination: Digillum
• Body Tube Diameter: 34mm
• Mounting Length: 6.2 inches
• Overall Length: 14.9 inches
• Weight: 30.9 oz
• Parallax: 10m to Infinity
• Field of View (5x): 24.2 ft / 100 yd
• Field of View (30x): 4.0 ft / 100 yd
• Eye Relief: 3.5 inches
• Exit Pupil (5x): 7.2mm
• Exit Pupil (30x): 1.9mm
• Power Throw Lever: Standard (Included)
• Color: Black
• Included: Flip-Up Covers, Cleaning Fob/Cloth, NX6 Multi-Tool, Power Throw Lever, Stickers, Owner's Manual
