Leupold VX-Freedom 3-9x40 Straight-Wall Duplex Rifle Scope, 1-Inch, 3 BDC Dials

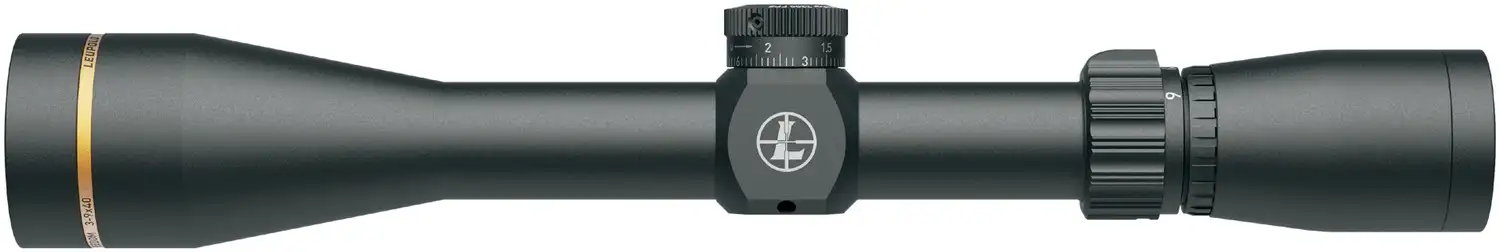

Leupold VX-Freedom 3-9x40 Straight-Wall Duplex Rifle Scope

The Leupold VX-Freedom 3-9x40 Straight-Wall Duplex is a specialized hunting riflescope with a 1-inch maintube and three cartridge-specific elevation dials. Built for straight-wall hunting rifles, it combines a familiar Duplex sight picture with an adaptable magnification range. This configuration gives deer hunters a practical optical package for wooded terrain, field edges and range preparation.

Choose the VX-Freedom Straight-Wall Duplex at BattleHawk Armory for a hunting scope with the cartridge dial package included.

Three Straight-Wall BDC Dials Included

The factory-installed dial is calibrated for .350 Legend with a 165-grain bullet. Additional dials cover .450 Bushmaster with a 250-grain bullet and .400 Legend with a 210-grain bullet. These bullet-drop-compensation (BDC) dials are load-specific; confirm the calibration matches your ammunition and rifle. An elevation ZeroStop provides a reference at zero, while the elevation dial remains non-locking.

3-9x Magnification and Advanced Optical System

The 3-9x range provides a useful balance between viewing more of the surrounding area at lower power and seeing greater target detail at higher power. Leupold's Advanced Optical System combines light transmission, glare control and image resolution for hunting conditions that change throughout the day. The 40mm objective and variable magnification keep the scope well suited to a conventional hunting rifle.

Scratch-resistant lens coatings help protect the optical surfaces during field use. The combination of a manageable zoom range and straightforward controls makes this a useful choice for hunters who value a clear view and uncomplicated equipment.

Duplex Reticle with a Clear Center

The Duplex design uses prominent outer posts that narrow into fine central crosshairs. The heavier portions help the reticle remain visible against cover, while the finer center leaves more detail visible around the aiming point. That layout suits hunters who prefer an open sight picture without a dense grid. Leupold introduced the Duplex concept in 1962, and its combination of bold outer lines and a fine center remains a recognizable hunting design.

This is a non-illuminated, second-focal-plane reticle. Its apparent size remains constant through the magnification range, even as the viewed image becomes larger or smaller. That consistent appearance keeps the visual reference familiar from low to high power.

1-Inch Mounting Interface and Focus

The maintube diameter determines the required ring diameter, so this scope calls for 1-inch rings with a mounting system appropriate for the rifle. Ring height and base compatibility still depend on the host rifle and available clearance. Eye relief describes the viewing distance behind the eyepiece where the full image is visible; it is a separate consideration from tube diameter.

The eyepiece focus accommodates the user's eyesight, and its lock ring retains that setting. Parallax is fixed at 150 yards, with no side-focus dial or adjustable objective.

Field Durability and Lifetime Support

The VX-Freedom family uses 6061-T6 aluminum construction to balance durability and weight. Waterproof, fogproof and shockproof performance supports use through changing weather and normal hunting conditions. At 12.2 ounces, this configuration adds limited weight to a rifle carried throughout the day.

Leupold's lifetime guarantee provides repair or replacement if the riflescope fails to perform. Coverage is not restricted to the original owner, does not require a warranty card or proof of ownership, and has no time limit. That continuing manufacturer support adds value beyond the initial purchase.

Product Specifications

• Manufacturer: Leupold
• Model: VX-Freedom Straight-Wall Duplex
• Manufacturer part number: 188527
• UPC: 030317057770
• Magnification: 3-9x
• Objective: 40mm
• Maintube: 1 inch
• Reticle: Duplex, second focal plane, non-illuminated
• Optical system: Advanced Optical System
• Click value: 1/4 MOA, windage and elevation
• Internal adjustment range: 60 MOA each, windage and elevation
• Elevation dial travel limit: 14 MOA
• Elevation control: Exposed finger-click dial with ZeroStop; non-locking
• Parallax: Fixed at 150 yards
• Field of view at 100 yards: 33.1 feet at 3x; 13.6 feet at 9x
• Eye relief: 4.2 inches at 3x; 3.7 inches at 9x
• Length: 12.49 inches
• Weight: 12.2 ounces
• Total mounting space: 5.39 inches

Frequently Asked Questions

What comes in the straight-wall dial package?

The scope includes three dials: .350 Legend 165-grain, .450 Bushmaster 250-grain and .400 Legend 210-grain. The .350 Legend dial is installed.

Is the Duplex reticle illuminated?

No. This configuration uses a non-illuminated Duplex reticle in the second focal plane.

Does it use 1-inch or 30mm scope rings?

It uses 1-inch rings. Select a compatible base and suitable ring height for the rifle.

Order the Leupold VX-Freedom 3-9x40 Straight-Wall Duplex from BattleHawk Armory. Complete your hunting rifle with a practical magnification range, a clean Duplex reticle and an included cartridge dial package, or explore more Leupold optics.
