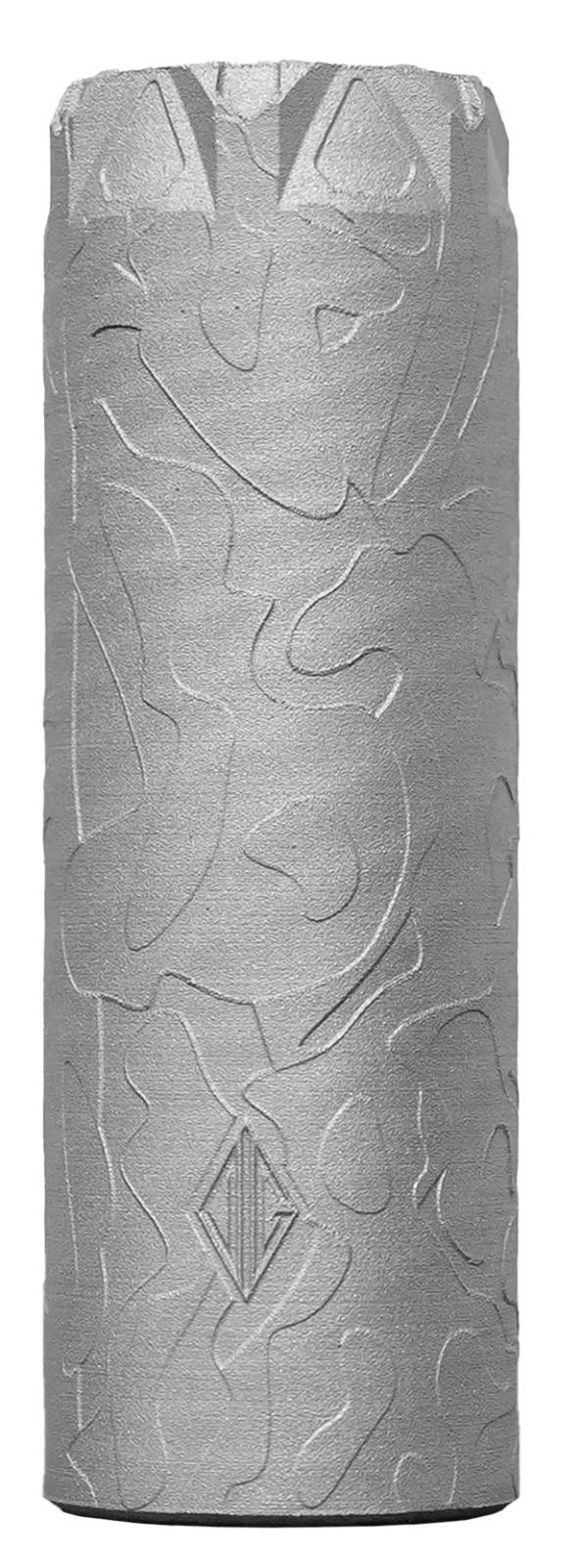

Irregular Design Group Hesychia SIXK-HUB 6mm 5.56 HUB 1.375-24 Raw Inconel 718 Suppressor
- SKU: IDG-SIXKH RAW
- UPC: 850078995148
- Model: Hesychia Sixk
![Irregular Design Group Hesychia SIXK-HUB 6mm 5.56 HUB 1.375-24 Raw Inconel 718 Suppressor](https://cdn33.coreware.com/cache/image-full-253844-ab230d61771cf336f66f960528787d33.jpg "Irregular Design Group Hesychia SIXK-HUB Suppressor
6mm / 5.56 · HUB 1.375-24 TPI · Raw Inconel 718 · Extreme Low Backpressure · Full-Auto Rated · 11.6 oz · 4.825" · No Coating · NFA The Irregular Design Group (IDG) Hesychia SIXK-HUB is the HUB-mount version of the Hesychia SIXK—a 6mm and 5.56 monolithic Inconel 718 suppressor on a 1.375-24 TPI HUB interface. Raw Inconel 718 finish—no coating applied. Laser Powder Bed Fusion (LPBF) construction with radial diamond initial chamber, early annular intakes, captured helix paths, shielded ports, and heavy internal filleting in a sealed monolithic unit with critical interfaces machined afterward. 11.6 oz. 4.825" OAL. 1.65" diameter. 3.24" between blast baffle and front face. 140 dB at ear, 144 dB at muzzle (MD dependent). Full-auto rated for 10.3" barrels and above. No host tuning required. Note on HUB packaging tradeoffs: The HUB threaded region consumes internal volume that in the native SIXK is used for additional gas pockets and disruption geometry. The SIXK-HUB maintains the same core design logic but differs in internal volume and efficiency from the native Hesion Bow version. For the most complete native system expression, the Hesychia SIXK is the preferred configuration.
HUB 1.375-24 TPI Interface
HUB 1.375-24 TPI mount for cross-compatibility with HUB-threaded muzzle devices and adapters. Threadlocker for the HUB adapter to the suppressor is highly encouraged. Always use an alignment rod before first firing. Compatible with HFH, Micro FE, and Macro FE via Hesion Bow HUB Adapter. IDG not liable for improper use of third-party mounting systems resulting in damage.
Extreme Low Backpressure Gas Management
Gas enters a radial diamond structure in the initial chamber, gets disrupted and cooled, then routes into annular pathways before reaching the first blast baffle. Immediate pressure distribution across the suppressor keeps host cycling behavior closer to the unsuppressed baseline. No adjustable gas blocks, heavier buffers, or spring changes required.
Monolithic Inconel 718 — LPBF Construction
Inconel 718 provides dimensional stability, erosion resistance, and thermal cycling durability under hard use with 6mm ARC and 5.56. LPBF enables early annular intakes, helix paths, shielded ports, integral filleting, and complex exterior texture in a single sealed unit. Blast baffle zone receives dedicated hardening treatment against premature erosion. No removable baffle stack, no user-serviceable internals.
4.825" / Full-Auto Rated
4.825" OAL at 11.6 oz. 1.65" diameter. Full-auto rated for 10.3" barrels and above. Minimum recommended barrel length is 10.3"—shorter barrels increase blast baffle erosion and raise projectile stability risk.
Raw Inconel 718 — No Coating
Raw Inconel 718 surface finish with no additional coating applied. The natural Inconel 718 surface is corrosion resistant and thermally stable without requiring an exterior coating.
Installation Notes
Install to muzzle device manufacturer's specification. Threadlocker on HUB adapter to suppressor highly encouraged. Always use alignment rod before first firing. IDG is not liable for improper use of third-party mounting systems resulting in damage.
NFA Item
NFA-regulated item. Requires completion of NFA tax stamp process and transfer through licensed Class III FFL dealer. The IDG Hesychia SIXK-HUB Raw Inconel delivers extreme low backpressure 6mm/5.56 HUB suppressor performance—uncoated monolithic Inconel 718 at 4.825" and 11.6 oz with HFH, Micro FE, and Macro FE compatibility.
Specifications:
Manufacturer: Irregular Design Group (IDG)
Model: Hesychia SIXK-HUB
UPC: 850078995148
Caliber: 6mm / 5.56
Material: Inconel 718
Manufacturing: Laser Powder Bed Fusion (LPBF)
Construction: Monolithic (Sealed)
Mount: HUB 1.375-24 TPI
Compatible Muzzle Devices: HFH, Micro FE, Macro FE (via Hesion Bow HUB Adapter)
Gas Profile: Extreme Low Backpressure
Overall Length: 4.825 inches
Diameter: 1.65 inches
Baffle-to-Front Distance: 3.24 inches
Weight: 11.6 oz
dB at Ear: 140 dB (MD Dependent)
dB at Muzzle: 144 dB (MD Dependent)
Test Platform: DD MK18 10.3"
Full-Auto Rated: Yes (10.3" barrel minimum)
Minimum Barrel Length: 10.3 inches
Host Tuning Required: No
Finish: Raw Inconel 718 (No Coating)")
