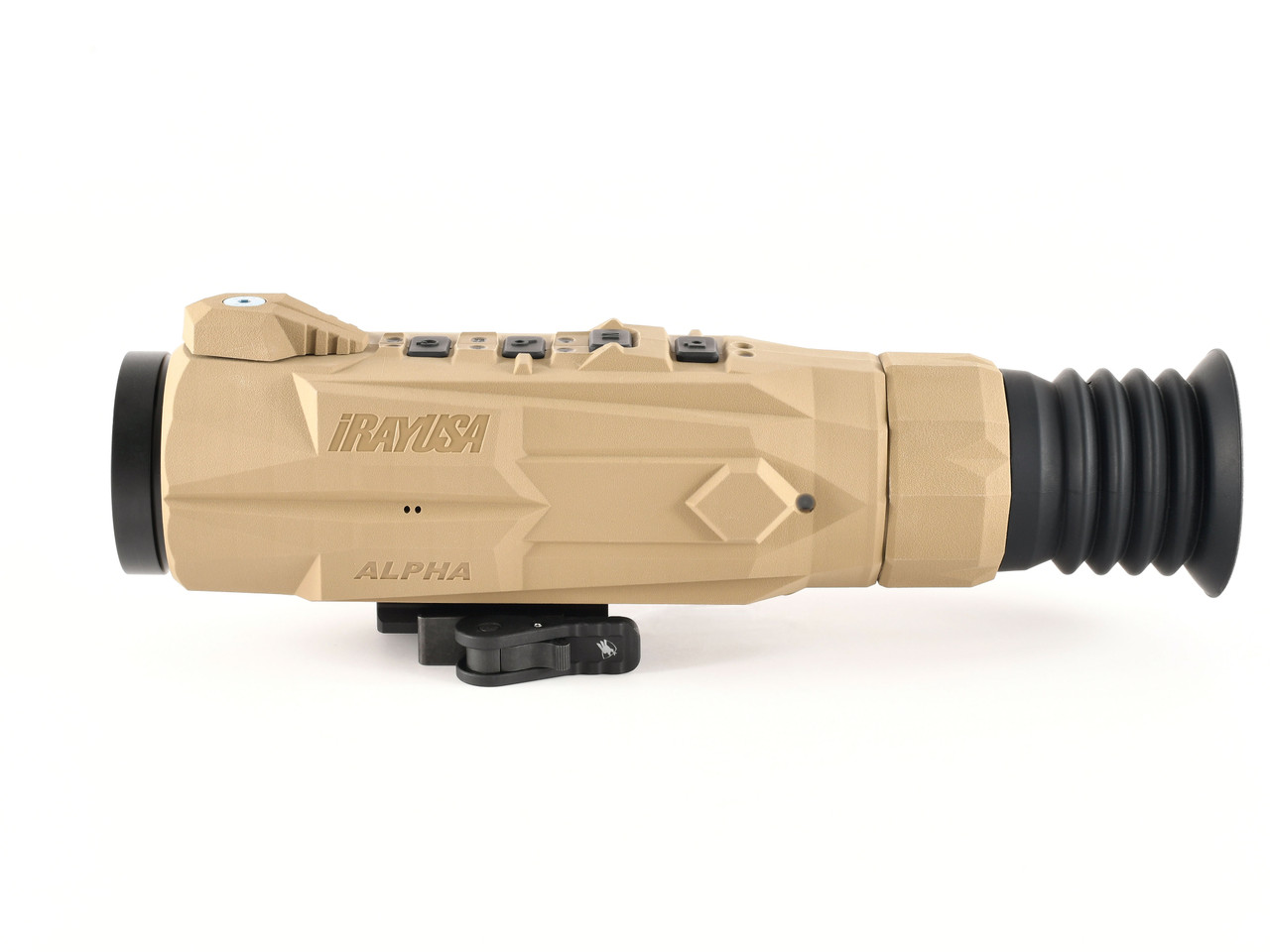

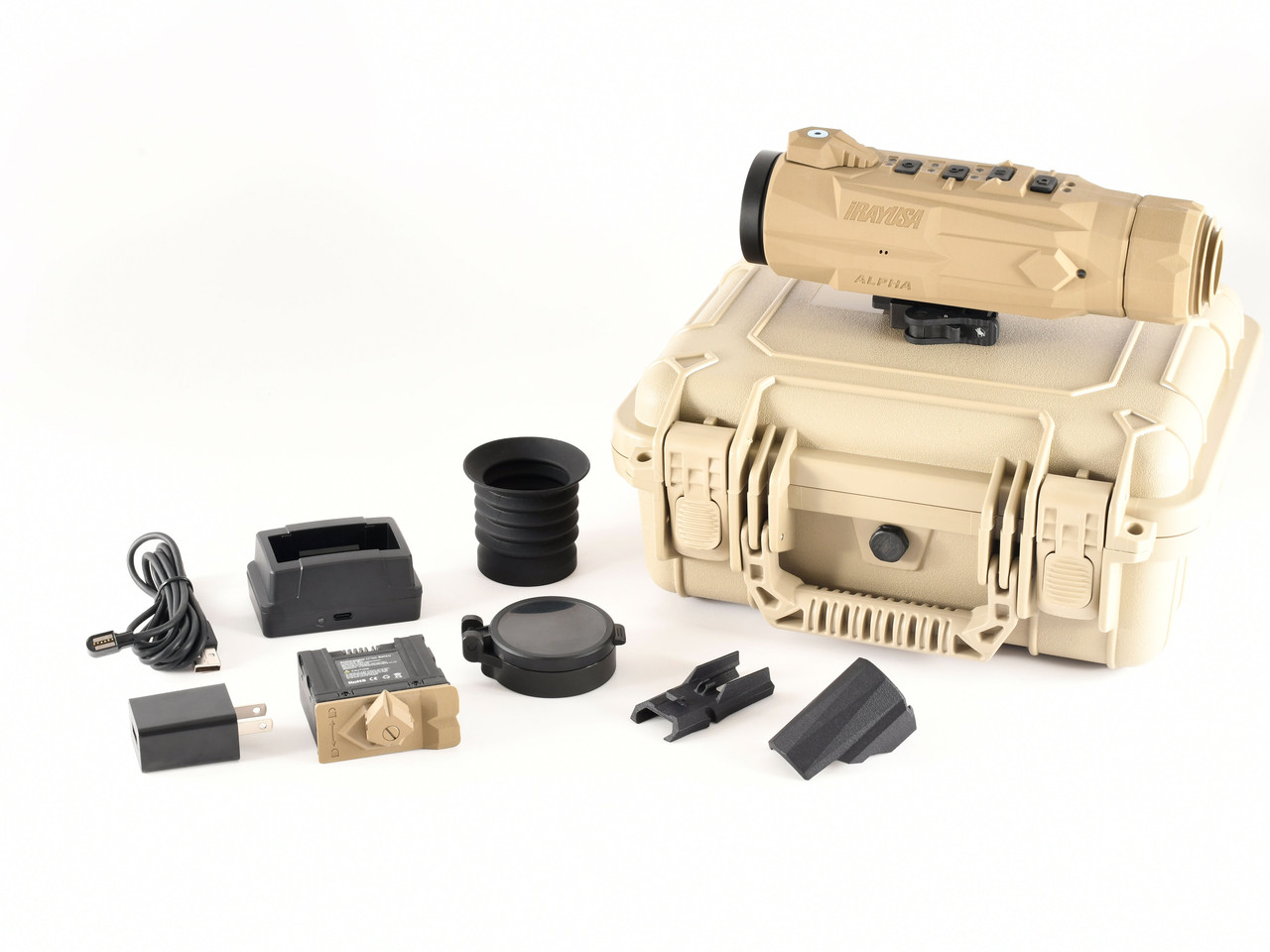

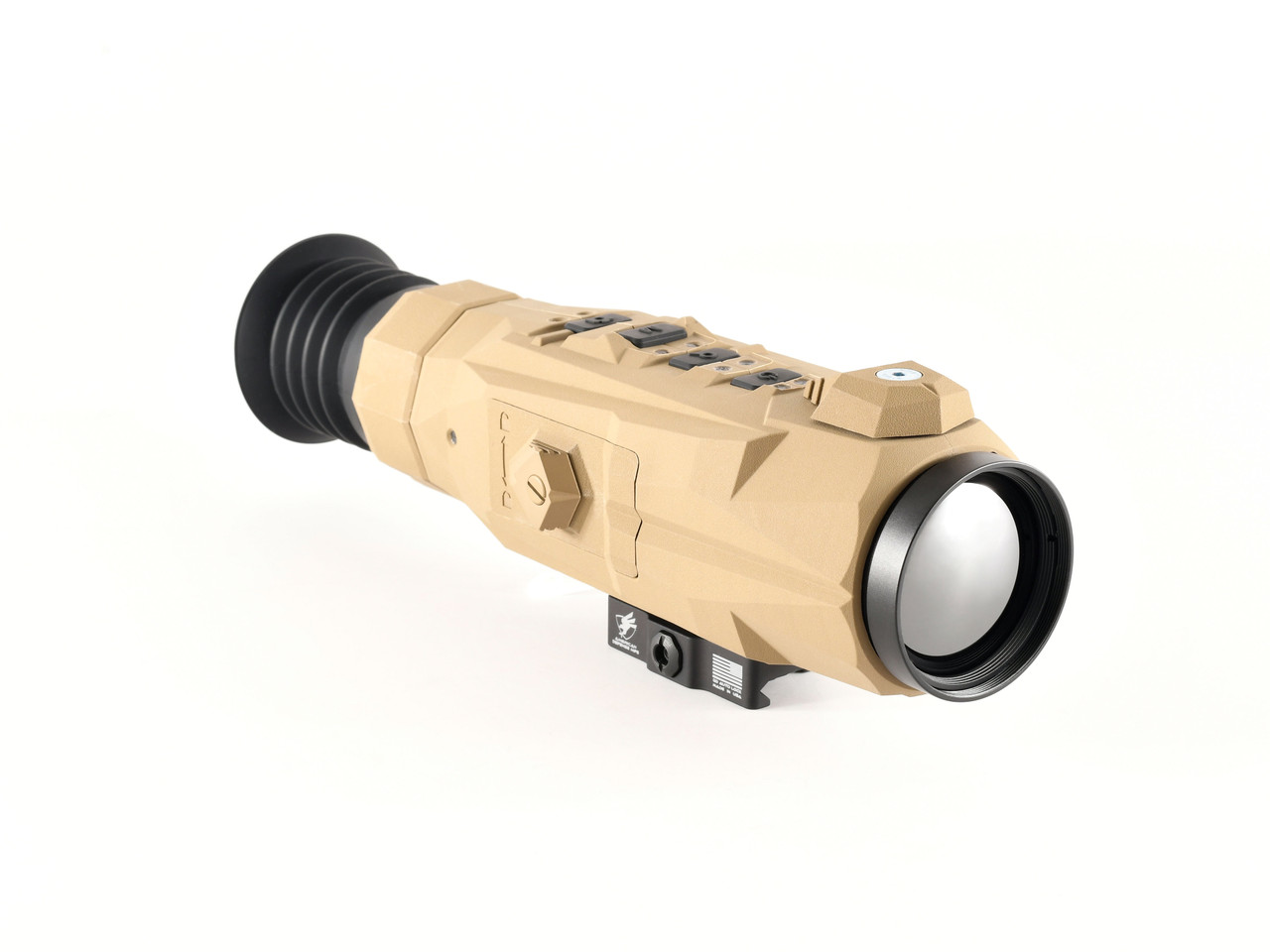

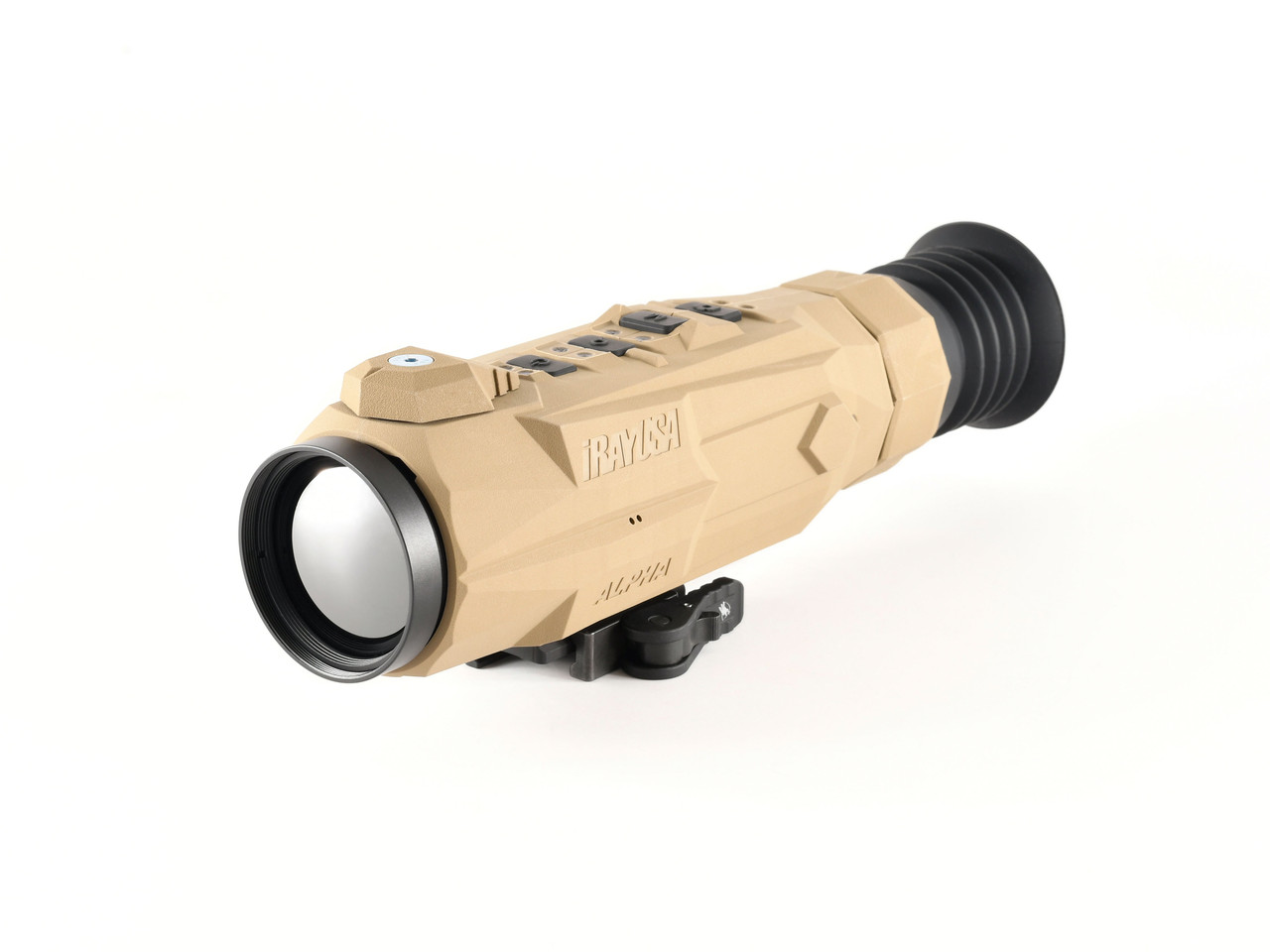

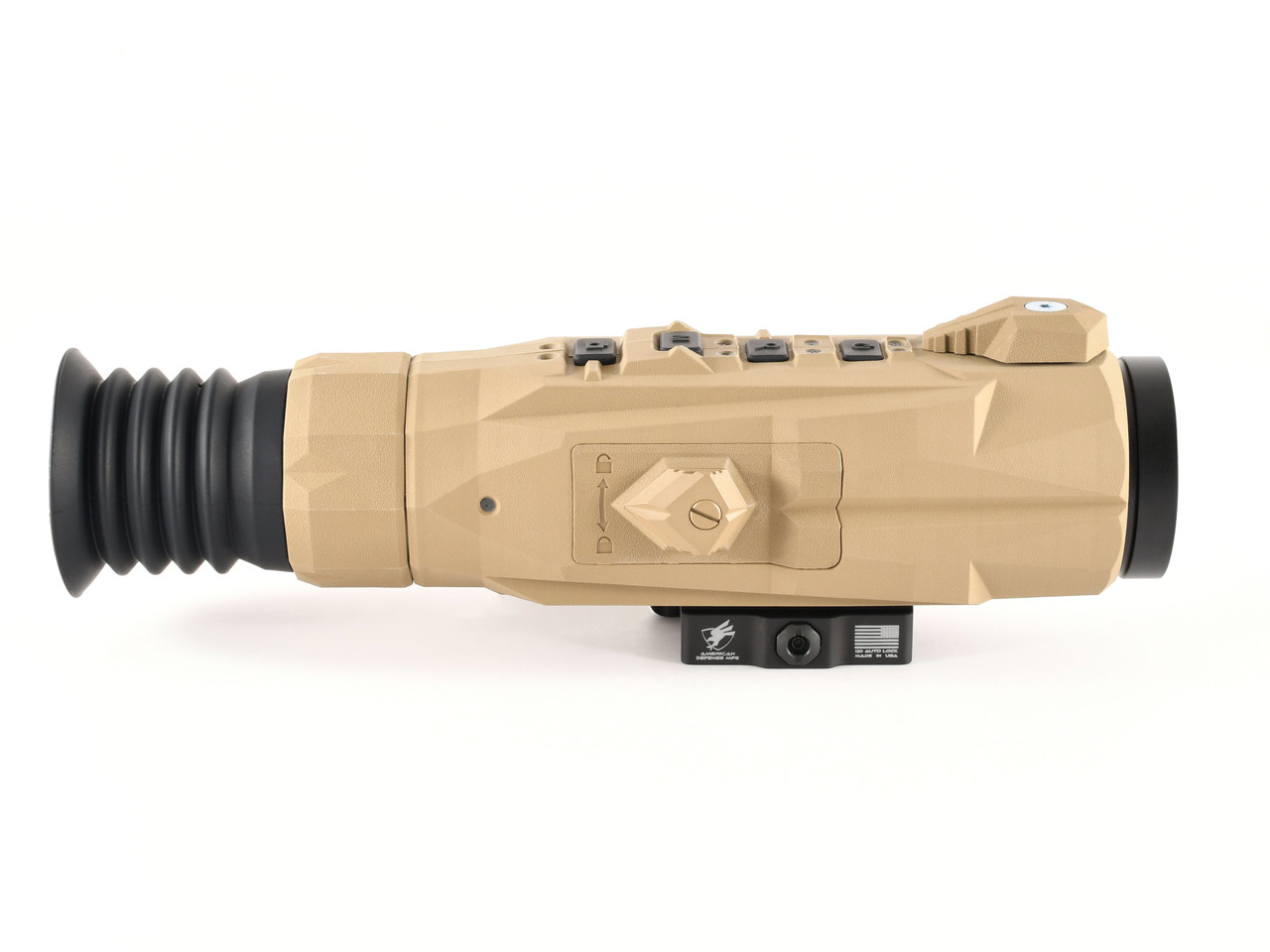

InfiRay RICO ALPHA 640 50mm 3x Thermal Weapon Sight

SKU: RA50
UPC: 850029093091

---

Product Overview

The InfiRay RICO ALPHA 640 50mm 3x Thermal Weapon Sight is the culmination of decades of user feedback, research, and American engineering. Purpose-built for the discerning night hunter, the ALPHA offers unparalleled performance and advanced features tailored to meet the demands of professionals and enthusiasts alike.

From the Autoloading Guarded Power Connector (AGPC) to the innovative battery latch design and RQD Quick Release Mount, every aspect of the ALPHA has been developed by hunters for optimal performance. The ultra-rigid housing features Tactile Ridge Positioning and a Single Finger Focus (SFF) design for ease of use in the field.

Additional features include image and video capture, multiple dynamic reticles, a stadiametric rangefinder, and wireless connectivity. Proudly designed, machined, assembled, and serviced in Texas, the ALPHA sets a new standard in thermal weapon sights.

---

Key Features

• High-Performance iRay Micro II Core
• Advanced Image Processing with MATRIX III Algorithm
• AMOLED HD Display with 1024×768 Resolution
• Onboard Video and Image Recording
• Multiple Color Palettes and Dynamic Reticles
• Stadiametric Rangefinder
• Wireless Connectivity and Mobile App Support
• 6-Hour Run Time with Li-Ion Battery Pack
• Ultra-Rigid, Glass-Filled Polymer Housing
• 1000 G Shock Resistance
• 32 GB Internal Memory
• 5-Year Warranty with 5-Day Service Guarantee

---

Optical Specifications

• Objective Lens Diameter: 50mm (Germanium Lens)
• Optical Magnification: 3×
• Digital Zoom: Up to 4×
• Field of View (Horizontal × Vertical): 8.8° × 6.6°
• Objective Focal Length: 50mm f/1.1
• Focus Mechanism: Manual Focus with Single Finger Focus (SFF)
• Exit Pupil Diameter: 14mm
• Eye Relief: 55mm
• Diopter Adjustment: -4 to +4

---

Sensor and Display

• Device Technology: Thermal Imaging
• Sensor Type: InfiRay MICRO II
• Sensor Resolution: 640×512 pixels
• Pixel Size: 12μm
• Sensor Frame Rate: 50 Hz
• Thermal Sensitivity (NETD): <50mk
• Spectral Response: 8-12 Microns
• Display Type: AMOLED HD
• Display Resolution: 1024×768 pixels

---

Performance

• Detection Range: Up to 2,400 Yards
• Reticles: 7 Dynamic Reticle Options
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• Image Processing: Advanced Image Correction and Automatic Image Optimization with MATRIX III Algorithm
• Picture-in-Picture Function: Yes
• One-Shot Zero: Yes
• Stadiametric Rangefinder: Yes

---

Recording and Connectivity

• Onboard Recording: Video and Image Capture
• Storage Capacity: 32 GB Internal Memory
• Image Format: 640×512 JPEG
• Video Output: Analog RS-170/NTSC
• Mobile App Support: Yes
• Wi-Fi Connectivity: Yes
• Connector Type: Magnetic
• External Power Source Compatibility: Yes, via Magnetic Connector (5V)

---

Power Supply

• Power Source: Li-Ion Battery Pack
• Run Time: Up to 6 Hours
• Standby Mode: Yes
• Startup Time: Less than 10 Seconds (Instant from Standby)

---

Physical Specifications

• Dimensions (L × W × H): 9.84" × 2.28" × 2.40"
• Weight: 33.68 oz (including battery)
• Housing Material: Aluminum with Ultra-Rigid, Glass-Filled Polymer Housing
• Mounting Interface: Picatinny STD-1913 Rail

---

Environmental Specifications

• Operating Temperature Range: -4°F to 122°F (-20°C to 50°C)
• Recoil Rating: 1000 g/s² (suitable for calibers up to .300 Win. Mag and 7mm Mag)
• Ingress Protection: IP67 (Waterproof and Dustproof)

---

Warranty Information

• Warranty Period: 5 Years
• Service Guarantee: 5-Day Repair or Replacement Promise
• Warranty Details: InfiRayUSA will repair or replace, at its discretion, any optic that becomes defective during normal use within the warranty period. If unable to fix your optic within five business days, they will offer a replacement product in like or better condition.

---

Elevate your night hunting experience with the InfiRay RICO ALPHA 640 50mm 3x Thermal Weapon Sight—where innovation meets precision.
