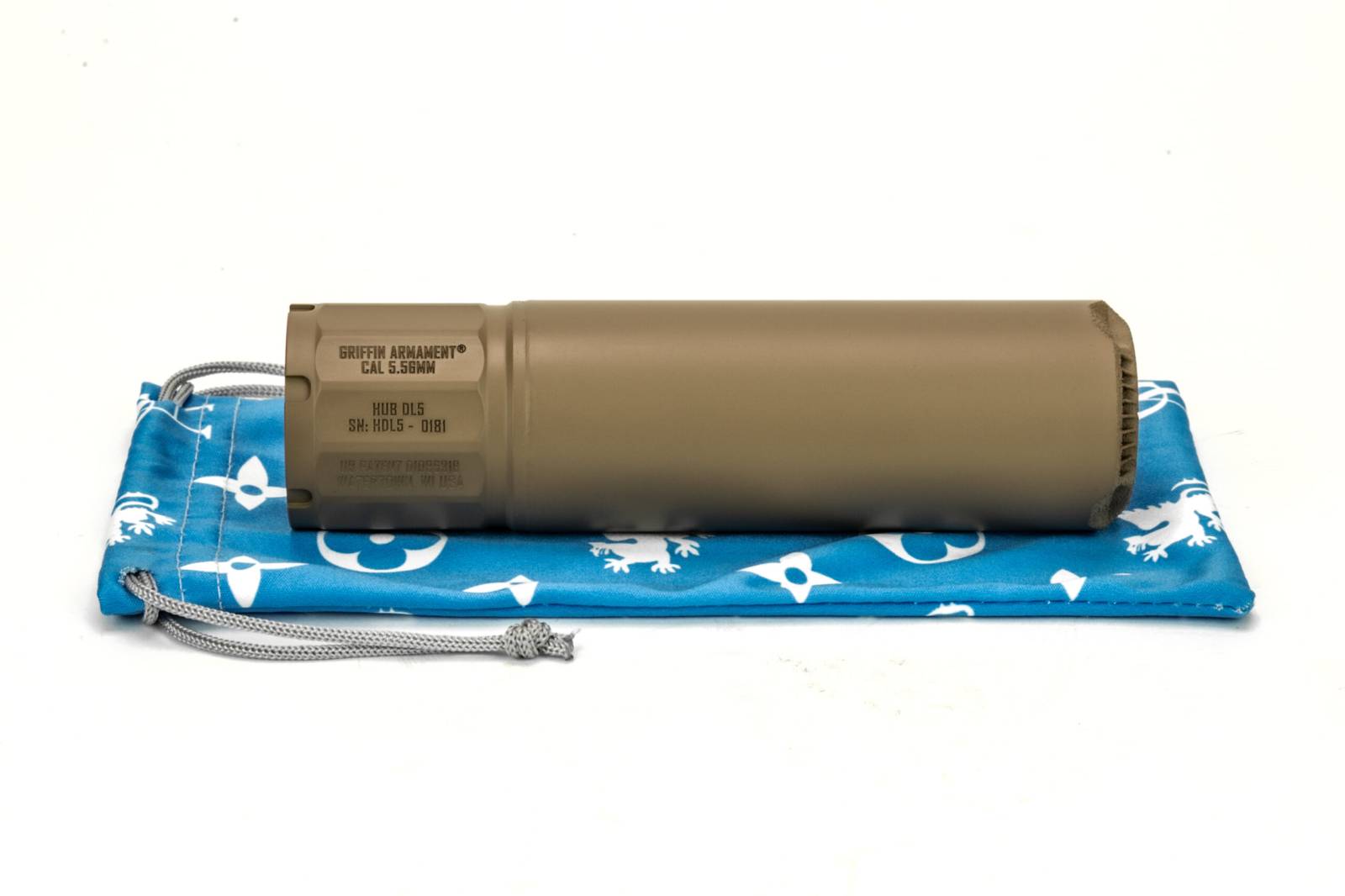

Griffin Armament 5 AM HUB 5.56 FDE Suppressor

The Griffin Armament HUB DUAL-LOK® 5 AM is a next-generation 5.56mm suppressor designed around managed backpressure and high durability. Its suppressor body is constructed from Griffin’s proprietary Nickel 625X™ powder alloy using SLM additive manufacturing technology, providing a modern construction platform for demanding applications.

The DUAL-LOK® 5 AM uses an industry-standard HUB rear thread measuring 1.375x24 TPI, allowing the suppressor to be configured with compatible HUB mount adapters. Its proprietary baffle stack is designed to manage backpressure, while the flash hider end cap peripherally vents gases. This design is intended to reduce system backpressure, recoil impulse, wear on the host firearm, and operator exposure to toxic gases while providing sound and flash reduction.

Specifications

• Model: HUB DUAL-LOK® 5 AM

• SKU: GAHUB556AM-W

• Caliber: 5.56mm

• Construction: Nickel 625X™ powder alloy

• Manufacturing: SLM additive manufacturing

• Rear Thread: HUB 1.375x24 TPI

• Baffle Design: Managed backpressure

• End Cap: Flash hider with peripheral gas venting

• Mounting: Compatible with Griffin Armament HUB mount adapters and other compatible inserts

• Material Performance: Nickel 625X™ demonstrated approximately 68% greater yield and tensile strength than additively manufactured INCONEL® 625 at 1200°F in testing

• Exterior Finish: Initial production units may have a ground smooth exterior; future restocks may not receive this additional exterior grinding step
