Combat Application Technologies Super Thug 718 HUB, 5.56mm, No Mount Included, Suppressor

Combat Application Technologies Super Thug 718 Inconel, 5.56mm, PVD, Suppressor

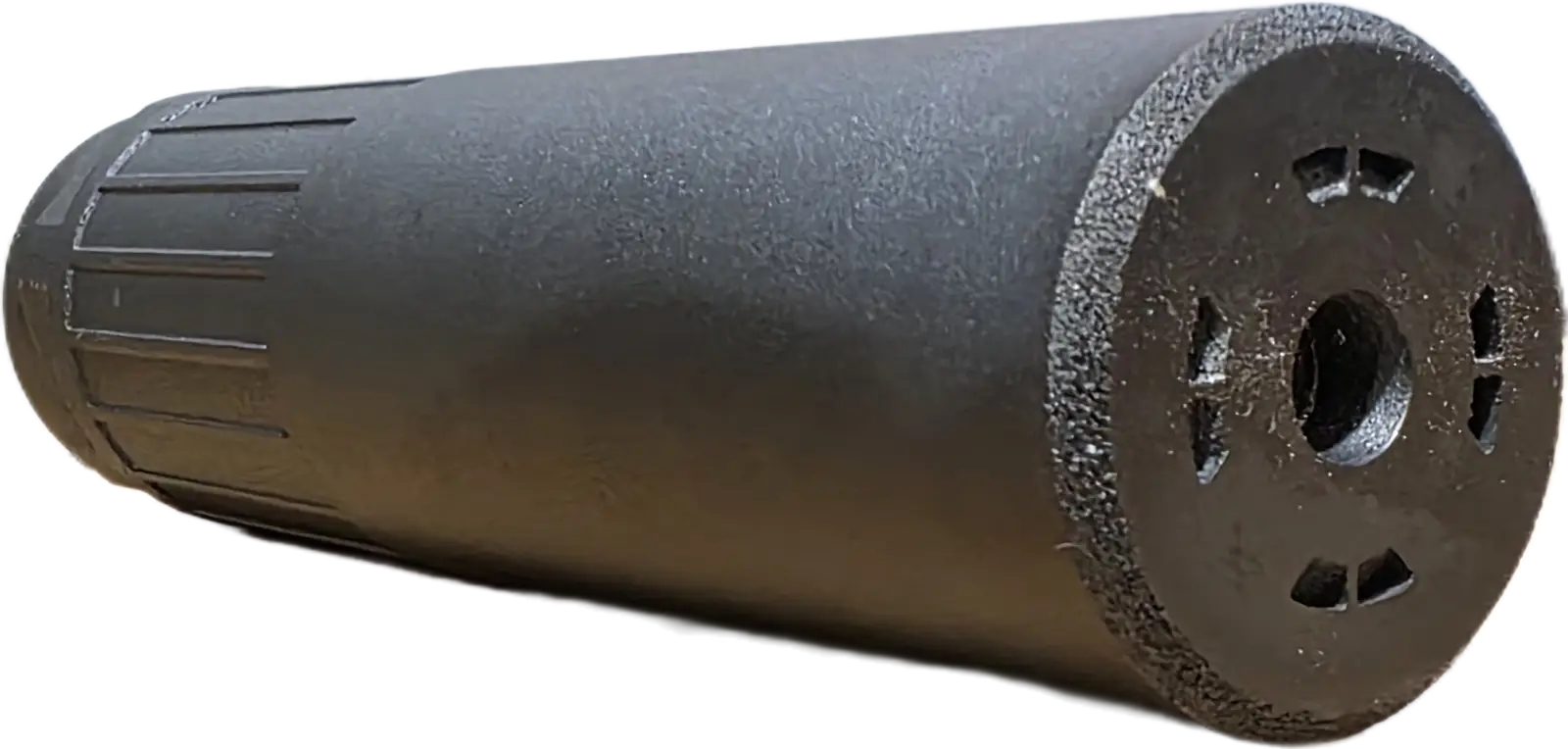

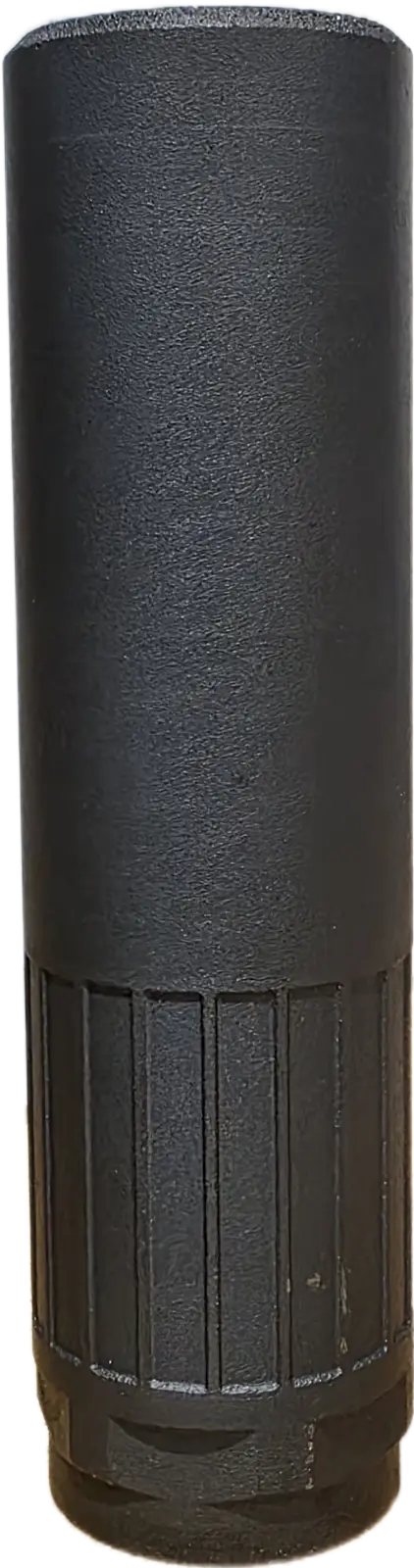

The Combat Application Technologies Super Thug 718 Inconel is a 5.56mm rifle suppressor that combines a 6-inch body with CAT's SBX gas-management architecture. The Inconel HUB configuration measures 1.60 inches in diameter and carries a nominal 17.5-ounce body weight. Its design emphasis is the AR-15 and compatible 5.56 NATO rifle systems, with 6mm ARC as the maximum listed cartridge.

The rear 1.375x24 HUB interface supports a separately selected compatible mount. No direct-thread adapter or mount is included. This version gives you the Inconel suppressor body with a PVD finish and the flexibility to complete the mounting arrangement around your host.

Shop CAT/ST at BattleHawk Armory and choose the configuration that fits your setup.

Inconel 718 for a Demanding Rifle Role

Inconel 718 construction prioritizes the material properties needed for demanding rifle applications. The nickel-based alloy is used where exposure to heat is a central design concern. At 17.5 ounces nominal, this version suits a setup in which material durability takes priority over the lowest possible suppressor weight.

The 6-inch length keeps the suppressor body compact while providing space for the internal flow architecture. The 1.60-inch diameter is relevant to clearance around surrounding accessories. Account for the chosen mount when evaluating final assembly size and weight; the body dimensions alone do not describe every mounted configuration.

SBX Architecture for 5.56mm Pressure Management

The Super Thug uses specialized SBX internal geometry to manage expanding gas and the pressure behavior associated with 5.56mm rifle use. The design addresses the way a suppressor interacts with the host system as well as its sound signature. Gas management remains dependent on the complete host, ammunition and mounting combination.

Its optimized reference platform is a 14.5-inch AR-15, with an optimized velocity range of 2,900-3,100 feet per second. These figures describe the intended performance emphasis. They do not establish an ammunition speed requirement or eliminate the need to confirm the rating of a different host configuration.

For a rifle selected for regular range use, this balance of body length, material and flow architecture is the central reason to consider the Super Thug. It provides a focused 5.56mm configuration without mixing in the dimensions or weight of another mounting version.

1.375x24 HUB Interface and Mount Selection

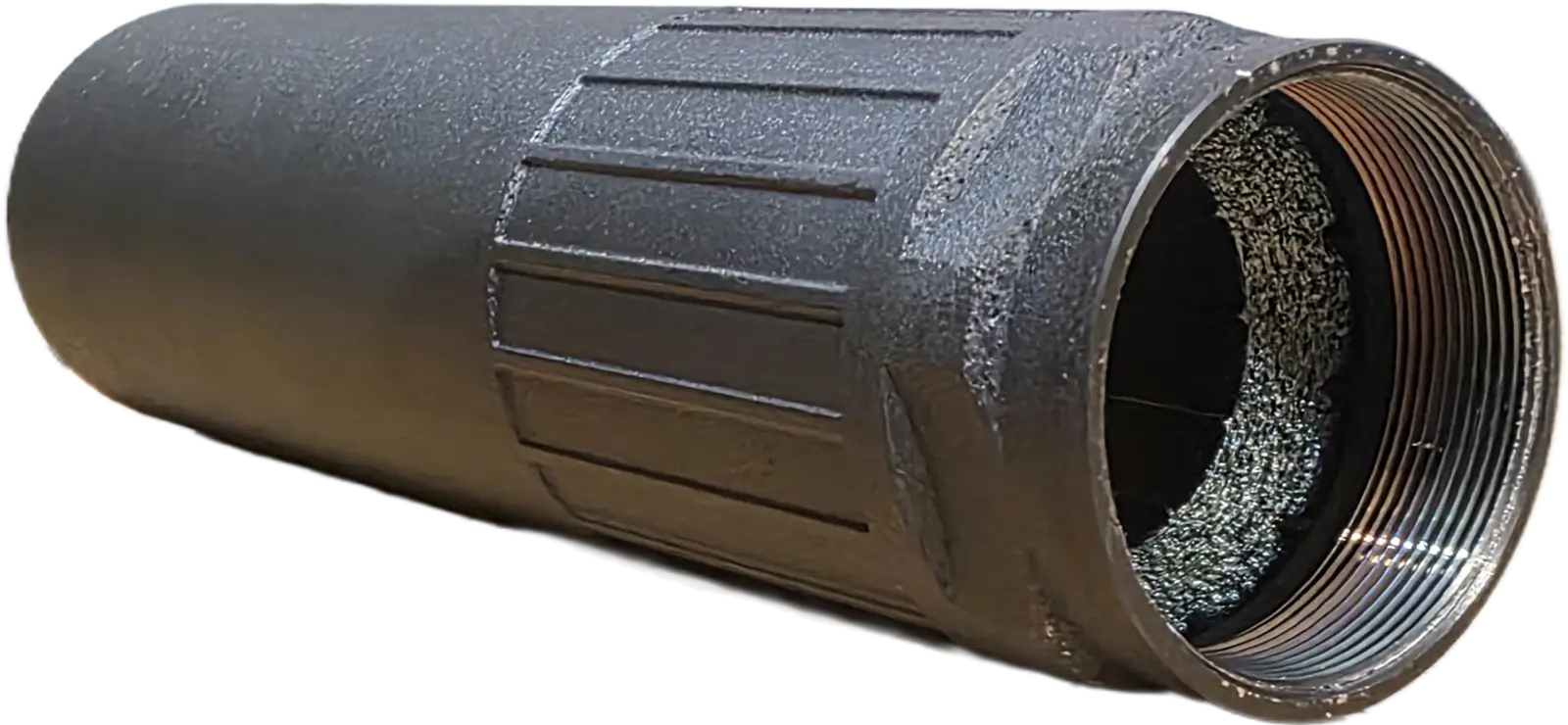

The HUB interface is located at the rear of the suppressor. Its 1.375x24 thread describes the connection to a mount or adapter; it does not describe the thread at the rifle muzzle. A complete mounting solution must match both the suppressor and the firearm.

When selecting a mounting system, confirm the relevant clearance and compatibility requirements rather than relying on the thread name alone. No mount is included, so the Super Thug HUB configuration lets you select the appropriate direct-thread or compatible mounting arrangement for the intended rifle.

Barrel and Caliber Compatibility

The specified minimum barrel length for this Inconel 5.56mm configuration is 10.3 inches. The optimized 14.5-inch platform and the 10.3-inch minimum serve different purposes: one is the design reference and the other is the stated minimum for the 5.56mm application.

6mm ARC is the maximum listed cartridge. That rating does not imply compatibility with every cartridge using a 6mm projectile, nor does it establish a separate 6mm ARC barrel-length minimum. Confirm the complete host configuration when moving beyond the specifically described 5.56mm application.

Included Equipment

Included is the CAT Super Thug suppressor in Inconel 718 with a PVD finish and 1.375x24 HUB interface. A mount, direct-thread adapter and rifle muzzle device are not included. Plan for the appropriate compatible mounting components when completing your order.

Product Specifications

• Manufacturer: Combat Application Technologies
• Model: CAT/ST Super Thug
• Variant: Inconel 718 HUB
• Caliber rating: 5.56mm / 5.56 NATO
• Maximum listed cartridge: 6mm ARC
• Material: Inconel 718
• Body length: 6 inches
• Diameter: 1.60 inches
• Nominal body weight: 17.5 oz
• Mount interface: 1.375x24 HUB
• Mount included: No
• Minimum 5.56mm barrel: 10.3 inches
• Optimized velocity: 2,900-3,100 fps
• Optimized platform: 14.5-inch AR-15
• Technology: SBX
• Finish: PVD
• SKU: CAT-STHUB718
• UPC: 850059086834

Frequently Asked Questions

Does the Super Thug HUB include a direct-thread adapter?

No. The suppressor is supplied without a mount or direct-thread adapter.

What is the minimum barrel length for the Inconel 5.56mm version?

The specified minimum is 10.3 inches for the Inconel 5.56mm configuration.

What is the maximum listed cartridge?

The Super Thug is listed for cartridges up to 6mm ARC. Confirm cartridge-specific host requirements before selecting a mounting setup.

Buy the CAT Super Thug 718 Inconel HUB suppressor at BattleHawk Armory and complete your 5.56mm rifle setup with a purpose-built SBX design and correctly matched mount.
