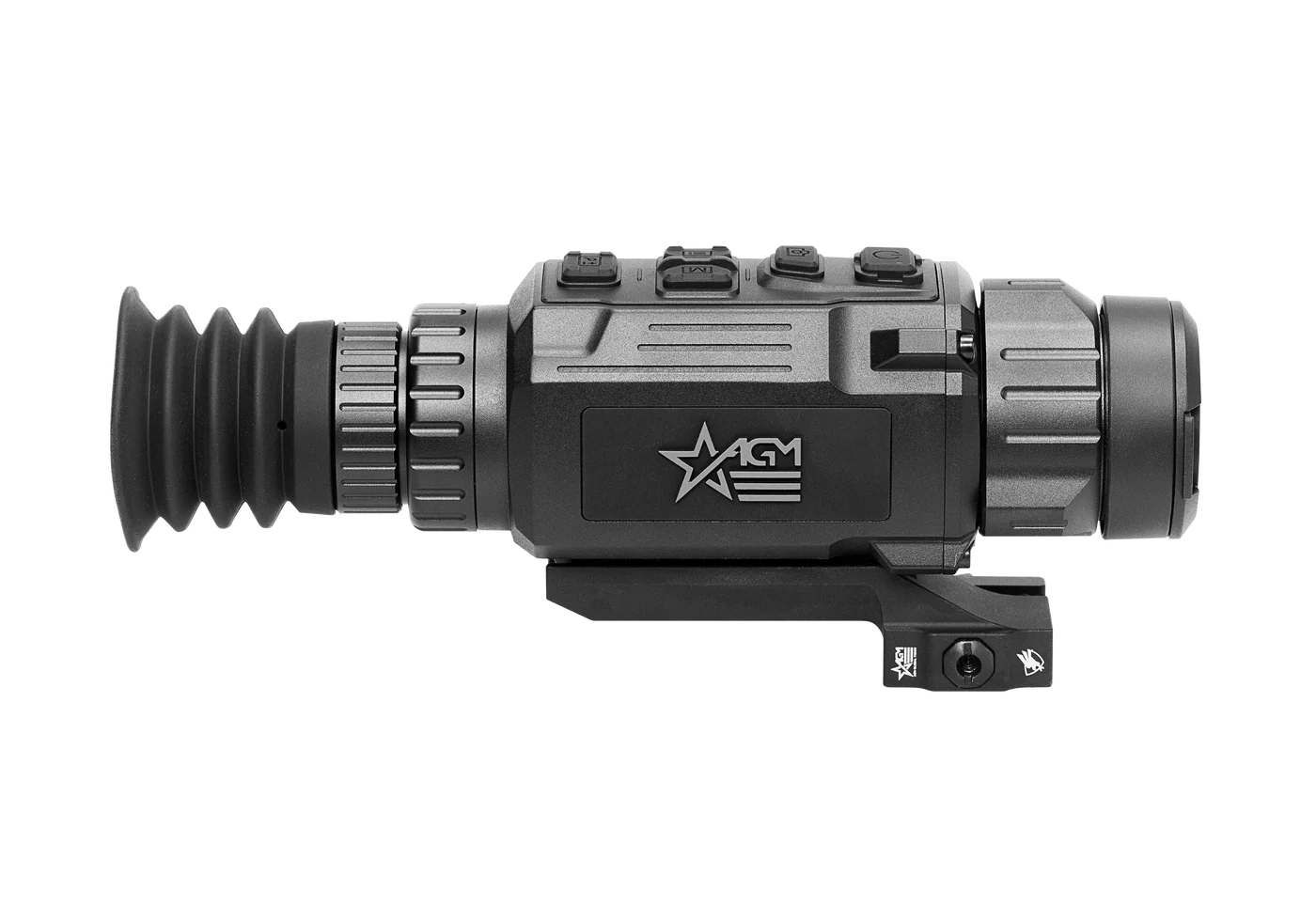

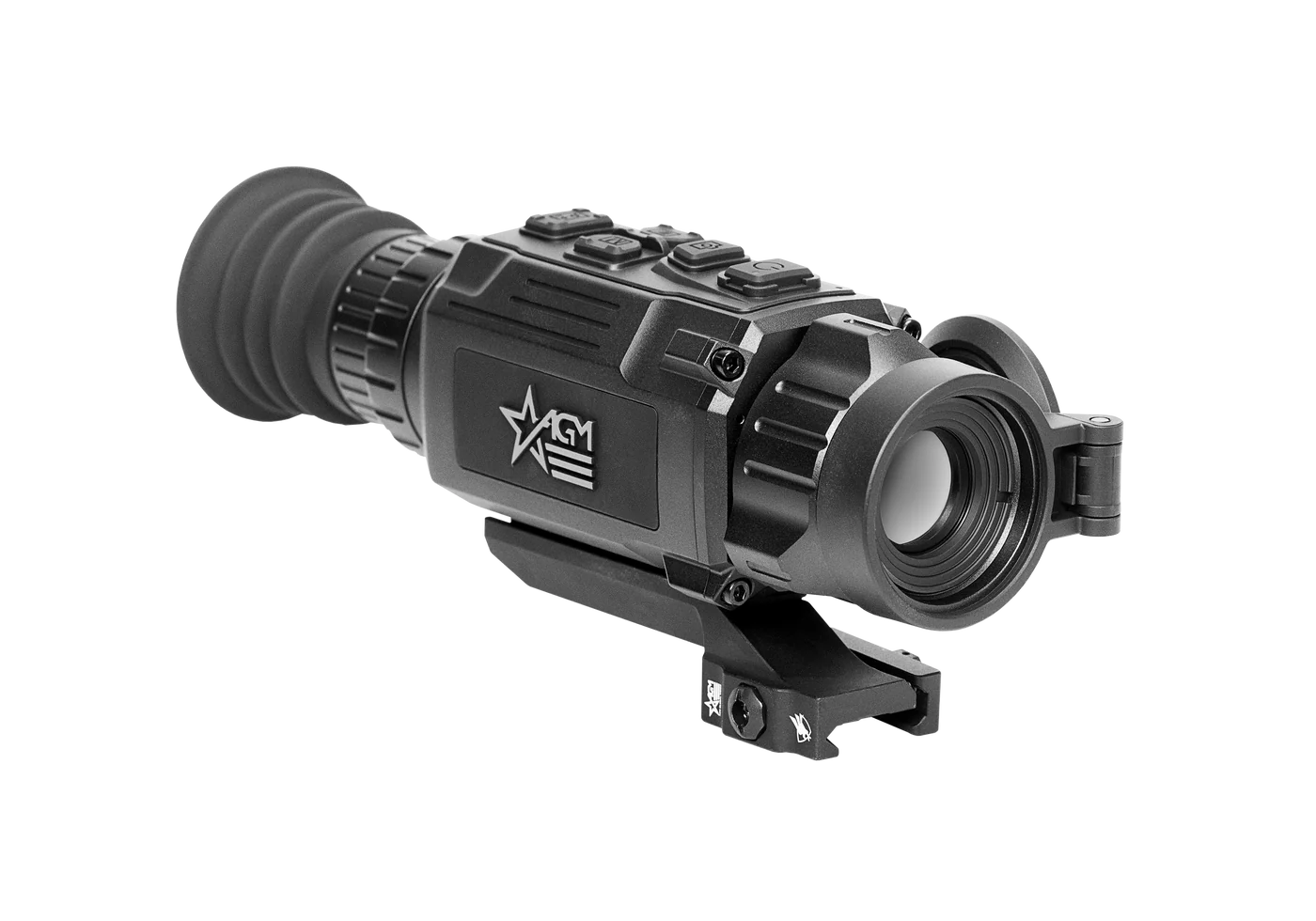

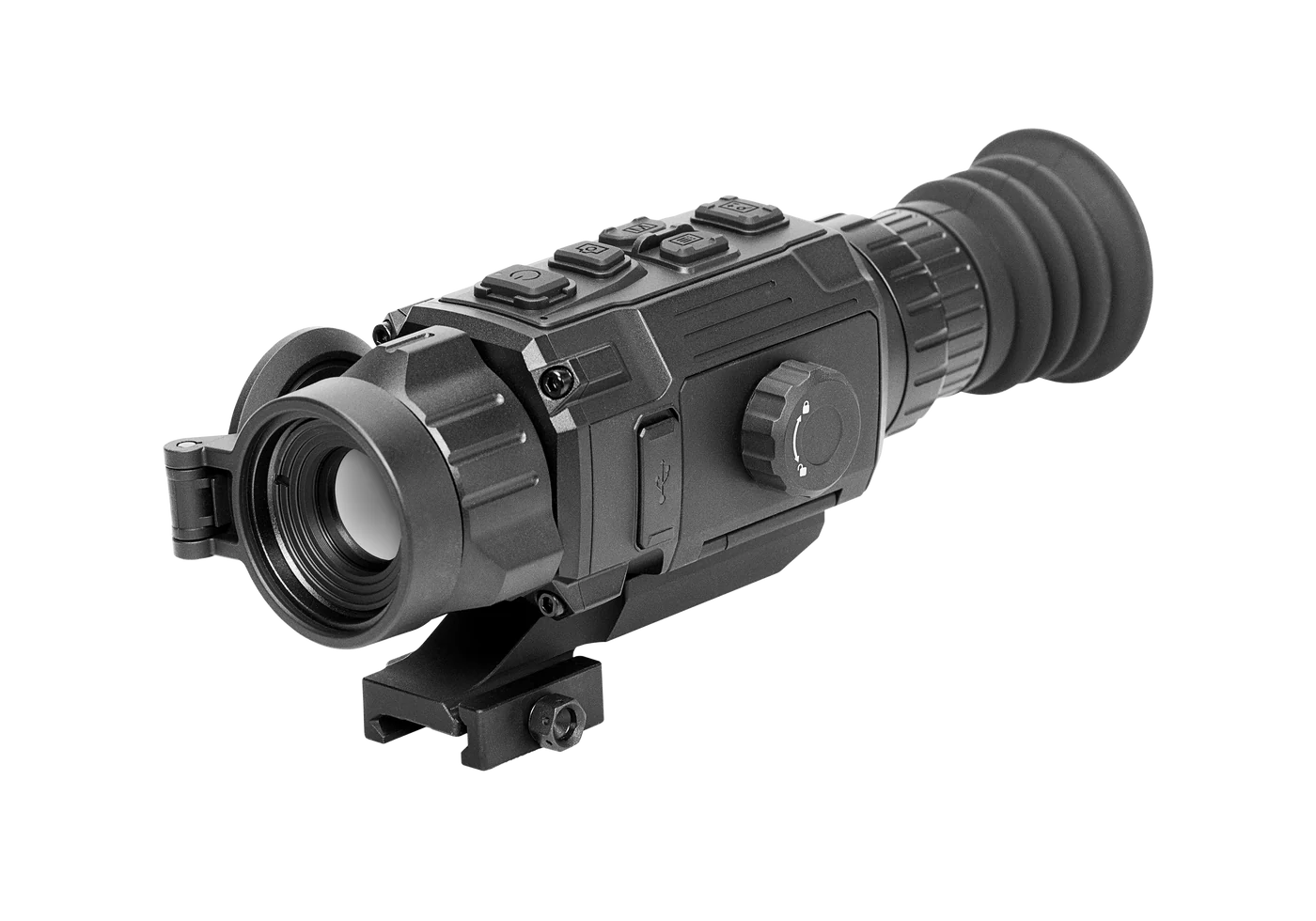

AGM Rattler V2 25-320 Thermal Riflescope

3.5–28x · 320x256 · 25mm Germanium Lens · 50Hz · OLED 1024x768 · NETD <20mK · IP67 · Wi-Fi · 16GB · Two NE-4400 Batteries The AGM Rattler V2 25-320 is a compact thermal riflescope with 25mm Germanium lens, 320x256 thermal sensor, and 3.5x base magnification with digital zoom to 28x. 50Hz refresh rate. OLED 1024x768 display. NETD less than 20mK. 12-micron pixel pitch. Detection range 1200m. 7.0°x5.3° field of view (37 ft x 28 ft at 100 yards). Four color palettes: Black Hot, White Hot, Red Hot, Fusion. Multiple reticle options. Customizable zeroing profiles. Shot Activated Recording with onboard video recording. 16GB internal storage. Wi-Fi with AGM Connect App. IP67 waterproof. Raised-button interface. Up to 6.5 hours battery life on single NE-4400—ships with two NE-4400 rechargeable Li-Ion batteries and charger. 1.08 lbs.

320x256 Thermal Sensor / 25mm Lens

320x256 thermal resolution with 12-micron pixel pitch and NETD less than 20mK. 25mm Germanium lens. Detection range to 1200m. 50Hz refresh rate for smooth target tracking.

3.5–28x Magnification

3.5x base magnification with digital zoom to 28x. 7.0°x5.3° field of view at base magnification—37 ft x 28 ft at 100 yards.

OLED 1024x768 Display

1024x768 OLED display with four color palette options: Black Hot, White Hot, Red Hot, and Fusion.

Shot Activated Recording / 16GB Storage

Shot Activated Recording automatically captures footage on trigger event. Onboard video and photo recording. 16GB internal storage. USB cable included.

Wi-Fi / AGM Connect App

Wi-Fi connectivity for use with the AGM Connect App for remote viewing and device control.

Two NE-4400 Batteries Included

Ships with two NE-4400 replaceable rechargeable Li-Ion batteries and battery charger. Up to 6.5 hours per battery.

Multiple Reticles and Zeroing Profiles

Multiple reticle options with customizable zeroing profiles for varied ammunition and platform configurations.

IP67 Waterproof

IP67 waterproof rating for field use in rain, fog, and demanding weather conditions.

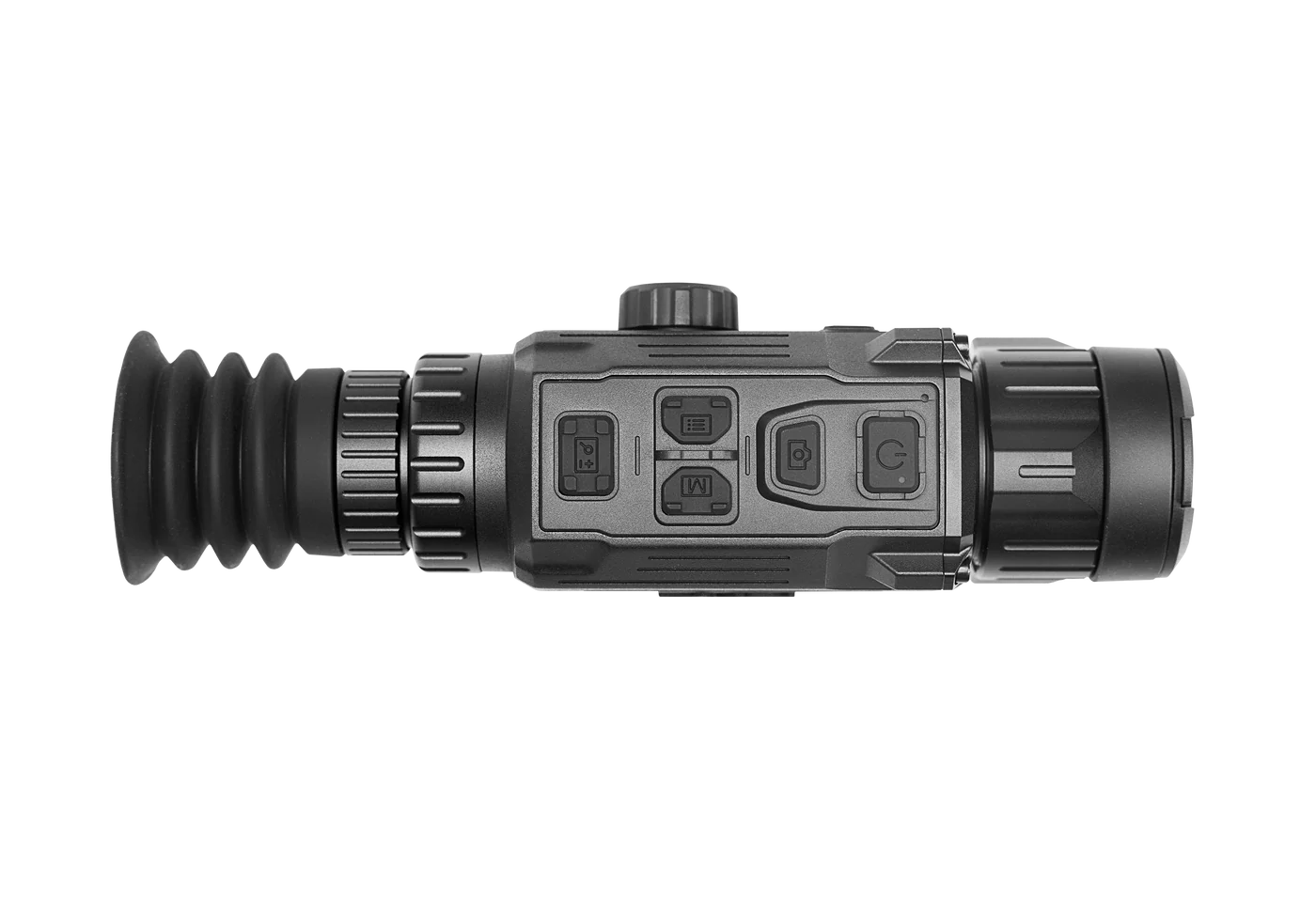

Raised-Button Interface

Intuitive raised-button design for easy operation with gloves.

Included in Box

Thermal riflescope, mount, two NE-4400 rechargeable batteries, battery charger, USB cable, lens cloth, user manual, carrying case. The AGM Rattler V2 25-320 delivers 320x256 thermal riflescope performance—25mm Germanium lens with 3.5-28x magnification, 50Hz OLED display, and Wi-Fi connectivity in a compact IP67 package.

---

Specifications:

• Manufacturer: AGM
• Model: Rattler V2 25-320
• Lens: 25mm Germanium
• Thermal Resolution: 320x256
• Pixel Pitch: 12 Micron
• NETD: Less than 20mK
• Base Magnification: 3.5x
• Digital Magnification Range: 3.5x–28x
• Field of View: 7.0°x5.3° / 37 ft x 28 ft at 100 yards
• Display: OLED 1024x768
• Refresh Rate: 50Hz
• Color Palettes: Black Hot, White Hot, Red Hot, Fusion
• Detection Range: 1200m
• Reticles: Multiple (Customizable)
• Zeroing Profiles: Customizable
• Recording: Shot Activated + Onboard Video/Photo
• Storage: 16GB Internal
• Connectivity: Wi-Fi (AGM Connect App)
• Battery: NE-4400 Rechargeable Li-Ion (Two Included)
• Battery Life: Up to 6.5 hours per battery
• Waterproof: IP67
• Weight: 1.08 lbs
• Included: Mount, (2) NE-4400 Batteries, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
